$281.00
ADAM-5050-A2E
Alt: ADAM 5000 Series
$95.00

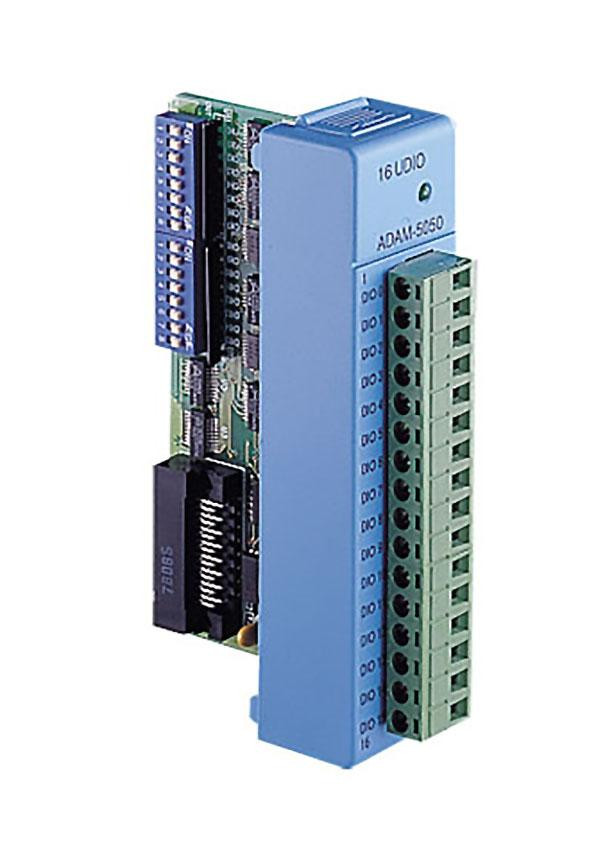

16-Channel Universal Digital I/O Module
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- Digital input: Support Dry/Wet Contact
- Digital output: Open Collector to 30 V, 450 mW max. load
- I/O Type: bit-wise selectable by DIP switch
- Power consumption: 0.35 W (typical); 1.2 W (max)
- Channels: 16
- Connectors: 1 x 16-pin plug-in screw terminal
Input Voltage:
- Dry Contact
- Logic level 0: close to GND
- Logic level 1: open
- Wet Contact
- Logic level 0: 2 V max.
- Logic level 1: 4 ~ 30 V
