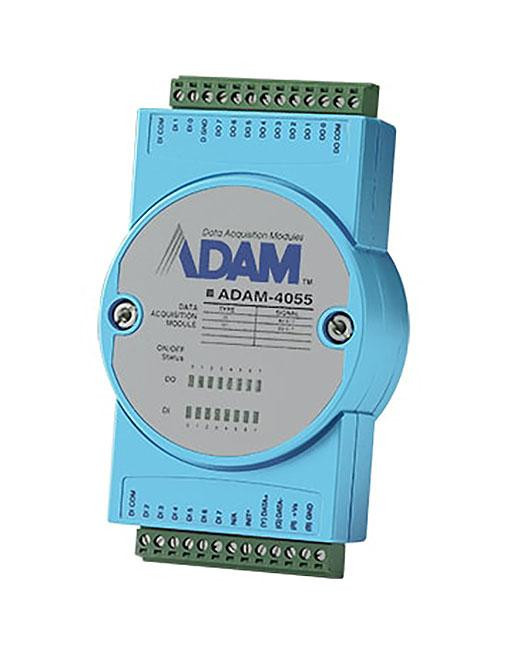

ADAM-4055-C
Alt: ADAM 4000 Series
$178.50
16-Channel Isolated Digital I/O Module, with LED and Modbus RTU,ASCII
- Minimum Purchase:
- 1 unit
Description
Features Include:
- 16-ch Isolated Digital I/O Module with Modbus
- Interface: RS-485
- Connectors: 2 x 13-pin plug-in screw terminal
- Power Input Unregulated: 10 ~ 30 VDC
- Power Consumption: 1 W @ 24 V DC typ., 1.7 W @ 24 V DC max.
- Isolation Voltage: 2,500 VDC
- Output Type: Sink
- Output Voltage: 0~40 VDC
- Sink Current: 200 mA max./channel
- Protocols: ASCII command and Modbus/RTU
- Watchdog Timer: System (1.6 second) & Communication
Input Voltage:
- Dry Contact
- Logic level 1: close to DGND
- Logic level 0: open
- Wet Contact
- Logic level 1: 10~50 VDC
- Logic level 0: 0~3 VDC
Technical Information:
- Advantech ADAM-4055/4056SO/4080 Digital Input Modules Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
