CFW500F77P0T4DB20G2
Weg

CFW500F77P0T4DB20G2

Alt: 15733937

$2,918.40

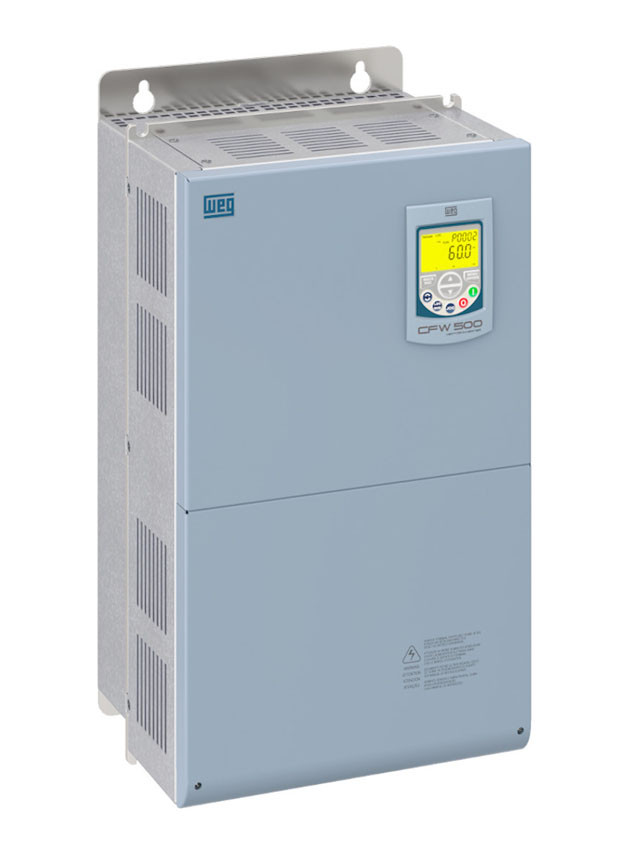

VFD, 60hp, 77 Amp (77A) ND/VT, 50hp, 61Amp (61A) HD/CT, 380-480VAC, 3 Phase, Dynamic Braking, Numeric LCD, IP20, Generation 2, Frame F, 21.6 x 11.8 x 10" (HWD) Optional CFW500-SFY2 STO Safety Module to Order Separately

Weight:
120.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Update August 2022:

Due to a component issue, the G2 series will have immediate changes. The changes below are expected to remain until mid-2023, at that point all models are expected to be available as G2 again.

  • IP20 versions, Frame size A through E will only be available as the previous version (G1)
  • IP20 versions, Frame size F and G will remain available as the current G2 model
  • IP66/NEMA 4 versions, Frame size A and B will remain available as the current G2 model

Below you will find the features that the G2 offered that the G1 does NOT have:

  • Features the G1 series does not offer (that were features of G2):
  • STO (Safe Torque Off) - CFW500-SFY2
  • Remote Advanced Text Keypad (HMI-01)
  • BACnet Communications
  • ND/HD ratings for frame E
  • Pump Genius- Multiplex
  • Field upgradable FM using WMS
  • WPS compatibility
  • VFD parameters copy/paste using advanced text keypad (HMI-01)
  • VFD paramenters copy/paste using I/O module
  • SoftPLC program stored in control board

We apologize for any inconvenience this has caused, there was very little notice given by the end supplier of the component.

CFW500 Series:

Looking for any easy-to-use drive that has the flexibility your application needs?

The CFW500 has easy to configure advanced technology options, developed for fast commissioning while offering excellent performance and reliability. Designed for exclusively industrial or professional use, is perfect for OEM, system integrators, panel installers and End Users providing great benefit from the added value. A wide range of plug-in modules and display options, showing up to 3 customer-selected variables at the same, make the CFW500 time efficient and easy to maintain.

New 2020: Additional CFW500 models have been released! Ending in B20Y2, these models have STO function (Safe Torque Off) and SS1 (Safe Stop 1). They are extremely flexible and provide machine manufacturers a cost-effective solution to reduce risks and ensure personal and equipment protection in case of failures in machines and industrial process. The CFW500 with safety functions is certified at TÜV Rheinlad, classified as SIL 3 according to IEC 61508, IEC 62061 and IEC 61800-5-2 and fulfils requirements for safety performance level PL e (cat. 4) according to EN ISO 13849-1.

Models ending in B20Y2 features include:

  • Safety functions STO and SS1-t
  • Can be used as part of the safety solution complying cat. 4 without contactor
  • Easy installation, commissioning and maintenance
  • Due to high safety level SIL 3 / PL e, the CFW500 with safety functions may replace the use of external safety relays for cables and emergency pushbuttons monitoring

Additional Features Include:

  • Easy to configure; step by step programming
  • A wide range of plug-in modules
  • Fan is simple and fast to remove
  • NEMA 1 Standard Housing
  • Capable of 150% overload for one minute, repeatable every 6 minutes
    • Based on ambient temperature of 50°C
    • Does not require you to oversize the drive
  • Standard conformal coating, classified as 3C2 per IEC spec 60721-3-3
  • 100% tested with load at the factor under rated conditions
  • The Weg CFW500 has replaced the Weg CFW08 Plus

Features Include:

  • Horsepower: 60 HP
  • Rated Input Voltage: 380-480 V, 3-Phase
  • Rated Output: 24Vcc, 3 phase
  • Rated Current: Normal Duty: 77 Amp, Heavy Duty: 61 Amp
  • Dimensions (H x W x D) 550 mm / 21.7 in x 300 mm / 11.8 in x 254 mm / 10.0 in
  • Housing: IP20

Series Features Include:

  • Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM)
  • Selectable plug-in modules
  • Plug and Play philosophy
  • Built-in operating and programming interface (HMI)
  • Built-in RS485 port (in any selected plug-in module)
  • Pump Genius: functions dedicated to driving pumps
  • Safety Function: STO and SS1 level SIL 3 / PLe
  • SoftPLC - built-in PLC functionalities
  • Braking IGBT (available from frame B)
  • 3C2 or 3C3 protection class for application in environments with corrosive chemicals
  • IP20 (standard) and NEMA1 (optional) protection ratings
  • Fan with quick exchange system
  • Internal RFI filter (optional)
  • USB communication port (CFW500-CUSB accessory)
