CFW500B16P0T2DB20G2
Alt: 15575202, Replacement for Generation-1: CFW500B16P0T2DB20 (11895099)
$431.11
VFD, 5hp, 16 Amp ND/VT, HD/CT, Input Power Supply: 3 Phase 200-240VAC, Motor Voltage: 230VAC, 3 Phase, Dynamic Braking, IP20, Generation 2, Frame B: 7.9 x 4.0 x 6.3" (HWD), Optional NEMA 1 Kit CFW500-KN1A Available to Order Separately
- Minimum Purchase:
- 1 unit
Description
WEG CFW500 KPCSF Installation, Configuration and Operation Guide
Features Include:
- Horsepower: 5 HP
- Rated Input Voltage: 200-240 V, 3-Phase
- Rated Output: 24VCC, 3 phase
- Rated Current: 16 Amp

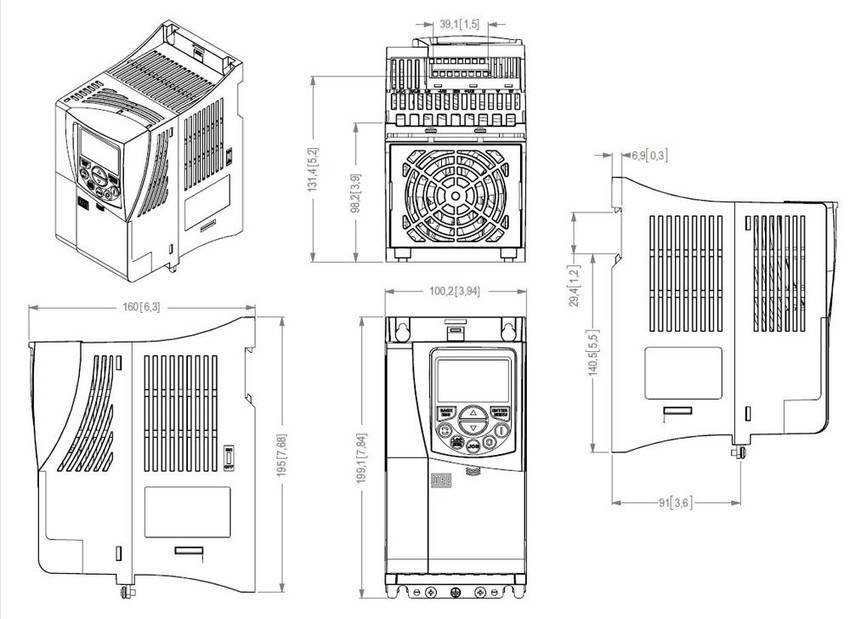

- Dimensions (H x W x D) 199 mm / 7.8 in x 100 mm / 3.9 in x 160 mm / 6.3 in
- Housing: IP20
- Safety Stop: Prepared to install the accessory CFW500-SFY2
- Dynamic Braking: Standard with braking
- RFI Filter: Without filter
Series Features Include:
- Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM)
- Selectable plug-in modules
- Plug and Play philosophy
- Built-in operating and programming interface (HMI)
- Built-in RS485 port (in any selected plug-in module)
- Pump Genius: functions dedicated to driving pumps
- Safety Function: STO and SS1 level SIL 3 / PLe
- SoftPLC - built-in PLC functionalities
- Braking IGBT (available from frame B)
- 3C2 or 3C3 protection class for application in environments with corrosive chemicals
- IP20 (standard) and NEMA1 (optional) protection ratings
- Fan with quick exchange system
- Internal RFI filter (optional)
- USB communication port (CFW500-CUSB accessory)
Technical Information:
- Weg CFW500B16P0T2DB20G2 Datasheet
- Weg CFW500-IP20-G2 (Generation 2) Variable Speed Drives Flyer
- Weg CFW500-IP20-G2 (Generation 2) Variable Speed Drives Brochure
- Weg CFW500 IP66 Protection Rating Flyer
- Weg CFW500 Installation & Power Connections Pocket Guide
- Weg CFW500 Quick Installation Guide
- Weg CFW500 Quick Parameter Reference
- Weg CFW500 Quick Setup Guide
- Weg CFW500 Quick Setup Guide Part 2
- Weg CFW500 Machinery Drives User's Manual
- WEG CFW500/CFW700 NEMA1 to IP20 Cross Reference
- Weg CFW500 Machinery Drives Programming Manual
- Weg CFW500 Pump Genius Simplex, Multipump & Multiplex Application Manual
- Weg CFW500 Solar Pump Drive Application Manual
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
Options Technical Information:
- WEG CFW500 Serial Remote HMI Installation, Configuration and Operation Guide
- WEG CFW500 SoftPLC User's Manual
- WEG CFW500 BACnet User's Manual
- WEG CFW500 CANopen User's Manual
- WEG CFW500 CAN Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 DeviceNet User's Manual
- WEG CFW500 Ethernet User's Manual
- WEG CFW500 Ethernet Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 USB Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Modbus RTU User's Manual
- WEG CFW500 Profibus DP User's Manual
- WEG CFW500 Profibus DP Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS232 Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS485 Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS485-B Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Flash Memory Module Installation, Configuration and Operation Guide
- WEG CFW500-SFY2 Safety Functions Module User's Manual
- WEG CFW500 IOR Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500-IOS-PNP Installation, Configuration and Operation Guide
- WEG Errata of the CFW500 User's Manual
- WEG CFW500 Analog & Digital I/O Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Digital I/O Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 KN1F-01 Installation, Configuration and Operation Guide
Application Notes and White Papers:
- WEG Energy Savings for the Water/Wastewater Industry White Paper
- WEG Industrial Refrigeration Motor Control Solutions White Paper
- WEG "Solutions for Harmonic Mitigation in Inverter Applications" White Paper
- Weg "Choosing a Variable Frequency Drive or Soft Starter Based on Your Application Need" Whitepaper
- Weg System Automation Solutions
