Alt: 14971347, Replacement for PESW-40V18AX-R35 (10728701)

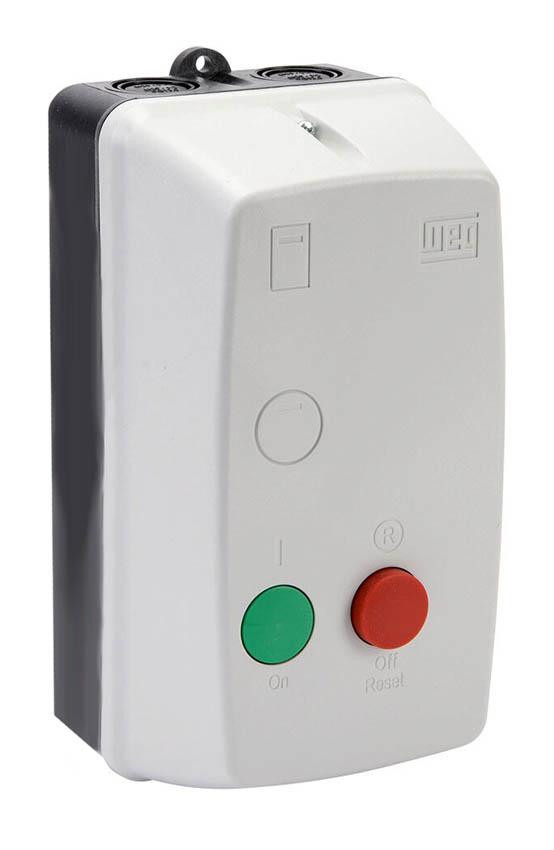

Enclosed Starter, 40 Amp (40A) CWB Contactor, 120VAC Coil Voltage, Start/Stop, 25-40A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.
Magnetic starters are designed to protect and operate motors.
There are a number of starters available from WEG:
Non-combination starters:
Combination starters:
Marshall Wolf Automation is your authorized WEG distributor!
Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.
Technical Information:
Weg
Enclosed Starter, 40 Amp (40A) CWB Contactor, 120VAC Coil Voltage, Start/Stop, 25-40A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
Weg
Enclosed Starter, 40 Amp (40A) (CWB40), 180-208V/50Hz/208-240V/60Hz Control Voltage, Start / Stop+Reset, 25-40 Amp (RW67) Overload Range, Direct Three Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
Weg
Enclosed Starter, 40 Amp (40A) CWB Contactor, 480VAC Coil Voltage, Start/Stop, 25-40A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
Weg
Enclosed Starter, 40 Amp (40A) CWB Contactor, 120VAC Coil Voltage, Reset Only, 25-40A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6" (HWD)
Weg
Enclosed Starter, 40 Amp (40A) CWB Contactor, 480VAC Coil Voltage, Reset Only, 25-40A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6" (HWD)
Weg
Enclosed Starter, 40 Amp (40A) CWB Contactor, 208-240VAC Coil Voltage, Reset Only, 25-40A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
Weg
Enclosed Starter, 10hp@230V, 40A (CWB40), 120V, 50/60Hz Coil Voltage, Start/Stop+Reset, 25-40A (RW67) O/L Range, 3 Phase, Metallic Encl., NEMA 1, Box M06 Dimensions: 13 x 7.5 x 5.6" (HWD), FVNR Non-Combination Across the Line Starter
Weg
Enclosed Starter, 40 Amp (40A) CWB, 480VAC, Start/Stop + Reset, 25-40A (RW67) Overload Range, Three Phase, Type 1, Metallic Enclosure, Non-Combination Starter
Weg
Enclosed Starter, 40 Amp (40A) CWB Contactor, 480VAC Coil Voltage, Reset Only, 25-40A Overload Range, Three Phase. NEMA 1, Metallic Enclosure, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
