Weg
PESW-B9D15EX-R59

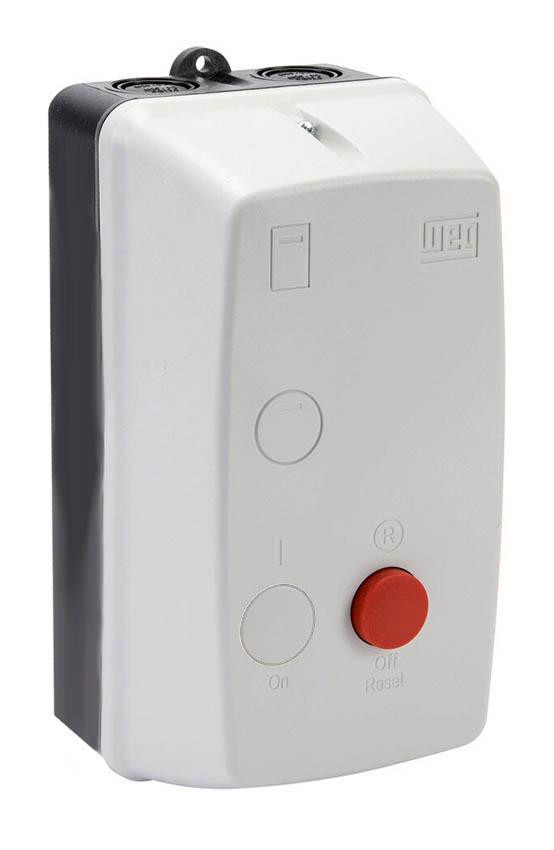

Enclosed Starter, 0.75hp@230V / 1.5hp@460V / 2hp@575V, 9A, 120V Coil, Reset Only, 4X, 1.8-2.8A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$78.29
PESW-B9D15EX-R61
Alt: 14833087
$78.29

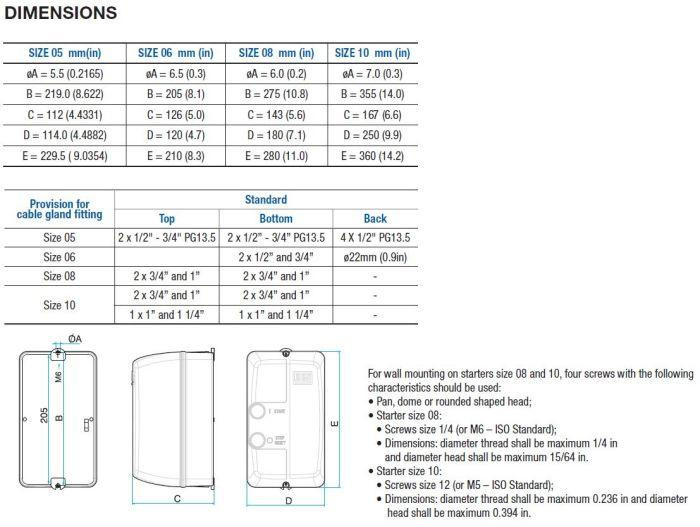

Enclosed Starter, 9 Amp (9A) CWB Contactor, 120VAC Coil Voltage, Reset Only, 4-6.3A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
- Weight:
- 2.27 LBS
- Minimum Purchase:
- 1 unit
Description
WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.
Magnetic starters are designed to protect and operate motors.
There are a number of starters available from WEG:
Non-combination starters:
- ESW series is metallic, NEMA 1, across the line starter, three phase
- ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
- ESWX series is metallic, NEMA 7/9, explosion proof starters
- PESW series is non-metallic, NEMA 4X, across the line starter, three phase
- PESWS series is non-metallic, NEMA 4X, across the line starter, single phase
Combination starters:
- ESWC series
- ESWE series
- ESWF series
Marshall Wolf Automation is your authorized WEG distributor!
Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.
Technical Information:
- Weg PESW Series Enclosed Starter Flyer
- Weg ESW & PESW Series Enclosed Starters Brochure

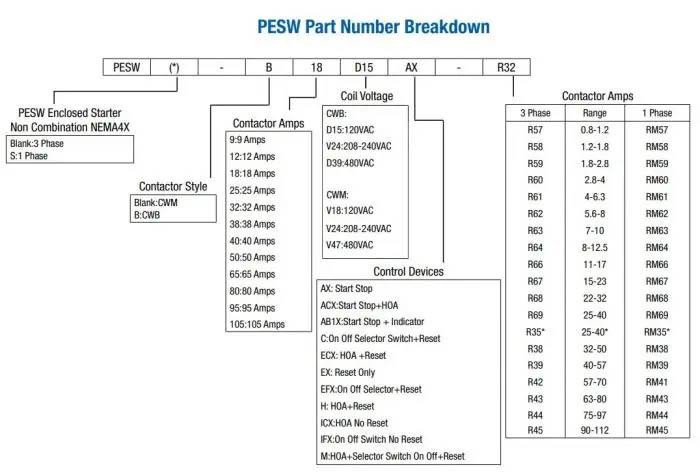

- Weg ESW & PESW Enclosed Starter Part Number Breakdown
- Weg ESW/PESW Series Connections for Non-Reversing Starters
- Weg KIT KESW Installation Guide
- Weg VFD & Enclosed Motor Controls Catalog
- Weg Power and Control Products Catalog
- Weg Enclosed Starters Catalog
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
PESWS-B9D15EX-RM61
Enclosed Starter, 9 Amp (9A) CWB Contactor, 120VAC Coil Voltage, Reset Only, 4-6.3A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
$69.81
Weg
PESW-B9D15EX-R57
Enclosed Starter, 0.33hp@230V / 0.5hp@460V, 9A, 120V Coil, Reset Only, 0.8-1.2A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$104.72
Weg
PESW-B9D15EX-R63
Enclosed Starter, 3hp@230V / 7.5hp@575V, 9A, 120V Coil, Reset Only, 7-10A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$78.29
Weg
PESW-B9D15EX-R58
Enclosed Starter, 1hp@460V / 1hp@575V, 9A, 120V Coil, Reset Only, 1.2-1.8A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$78.29
Weg
PESWS-B9D15EX-RM60
Enclosed Starter, 9 Amp (9A) CWB Contactor, 120VAC Coil Voltage, Reset Only, 2.8-4A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
$69.81
Weg
PESW-B9D15EX-R62
Enclosed Starter, 2hp@230V / 5hp@460V, 9A, 120V Coil, Reset Only, 5.6-8A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$78.29
Weg
PESWS-B9D15EX-RM63
Enclosed Starter, 0.5hp@115V, 9A, 120V Coil, Reset Only, 7-10A Overload Range, Single Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$69.81
Weg
PESWS-B9D15EX-RM62
Enclosed Starter, 0.33hp@115V / 1hp@230V, 9A, 120V Coil, Reset Only, 5.6-8A Overload Range, Single Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$69.81
