Weg
BLB-11

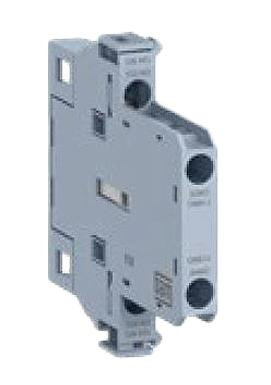

Auxiliary Contact Block, 1NO/1NC, Side Mount, Screw Terminal, Blue Cover Color, CWB Contactor Accessory
$8.58
CWBN0-11-30D15
Alt: 14400323
$46.02
NEMA Contactor, 18 Amp (18A), 1NO/1NC Auxiliary Contacts, 3NO Power Pole, 120VAC, 50/60Hz, Screw Terminal, 78.4 x 45 x 134.6mm (3.09 x 1.77 x 5.30") (HWD)
- Weight:
- 1.03 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CWBN NEMA Contactors
Available from Size 00 to Size 3, the CWBN series meets or exceeds the NEMA standards for full voltage or reduce voltage motor starting.
These contactors are compact and a great option for customers that are used to specifying their contactors by NEMA size.
- Rated for inductive loads up to 95 Amps or 50 HP @ 460 V, WEG can offer the suitable contactor for your application
- NEMA size 00, 0, 1, 2, 3
- Compact footprint
- Reducing inventory is easy with CWB's common accessories.
- For example, side and front mounted auxiliary contact blocks are the same from 2 to 50hp @ 460V
Features Include:
- Rated operational voltage: 690 V
- Rated operational frequency - minimum: 25 Hz
- Rated operational frequency - maximum: 400 Hz
- Degree of protection: Main circuit IP10
- Degree of protection: Control circuit IP20
- Rated current: 18 A (N0)
- Rated current In - AC-4: 18,5 A
- Rated operational Current: 90 A

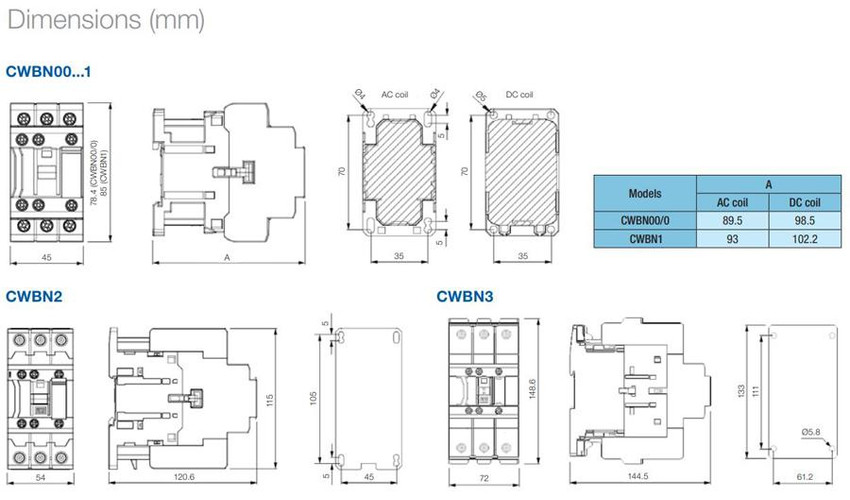

- Height: 78.4 mm (3.09 in)
- Width: 45 mm (1.77 in)
- Depth: 134.6 mm (5.30 in)
Standard Series Features:
- “Zero-Width” Mechanical Interlock
- Simple and Compact Mounting of Surge Suppressor Blocks
- Contactor Coil Operated on AC or DC
- Simple and Organized Control Circuits
- Additional Contact Blocks
- Easy Access Power and Control Terminals
Technical Information:
- Weg CWBN0-11-30D15 Technical Data
- Weg CWB Line Contactors Brochure
- Weg CWBN Line NEMA Contactors Catalog
Installation Guides:
Learn more about Contactors, Starters & Overload Relays here!
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
BFB-20

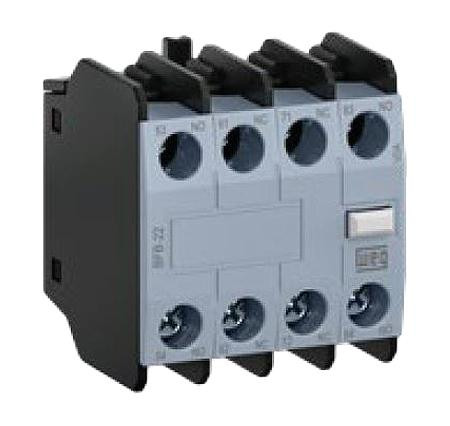

Auxiliary Contact Block, 2NO, Front Mount, Screw Terminal, Blue Cover Color, CWB Contactor Accessory
