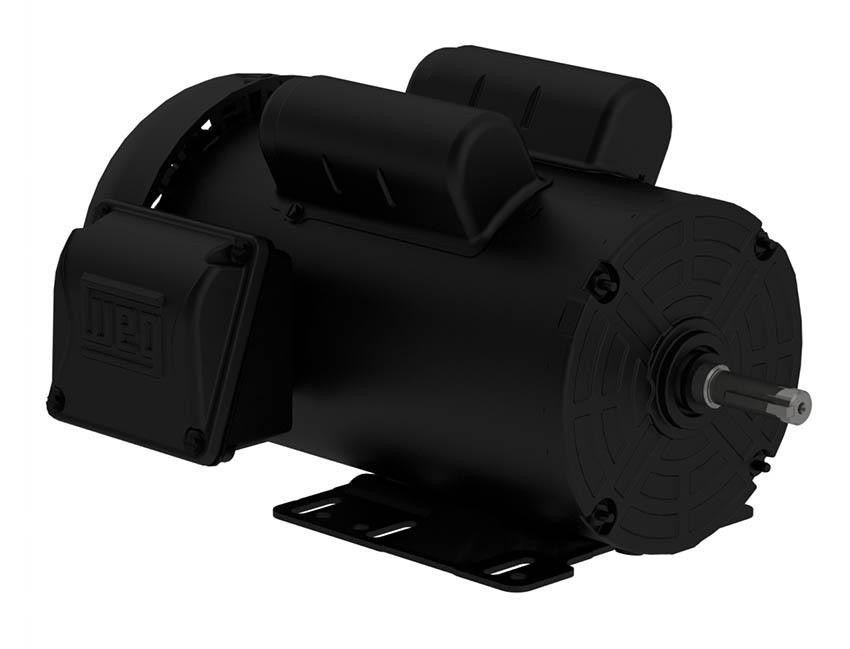

00158ES1B145T-S

WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.



WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

• Frame: 143/5T
• Output: 1.5 HP (1.1 kW)
• Number of Poles: 4
• Frequency: 60 Hz
• Rated speed: 1745 rpm
• Slip: 3.06 %
• Rated voltage: 115/208-230 V
• Rated current: 15.0/8.27-7.48 A
• R. Amperes: 120/66.2-59.8 A
• LRC: 8.0x(Code L)
• No load current: 7.80/3.36-3.90 A
• Rated torque: 4.51 ft.lb
• Locked rotor torque: 250 %
• Breakdown torque: 270 %
• Locked rotor time: 14s (cold) 8s (hot)
• Moment of inertia (J): 0.1426 sq.ft.lb
• Design: L
• Insulation Class: F
• Temperature rise: 80 K
• Service factor: 1.15 (1.00 @ 208V)
• Duty Cycle: Cont.(S1)
• Starting Method: Direct On Line
• Ambient temperature: -20°C to +40°C
• Altitude: 1000 m.a.s.l.
• Degree of Protection: IP55
• Enclosure: IC411 - TEFC
• Mounting: F-1
• Rotation: Both (CW and CCW)
• Noise level: 54.0 dB(A)
• Approx. weight: 48.0 lb
