134143
Alt: V1S-G-Q3
$20.12

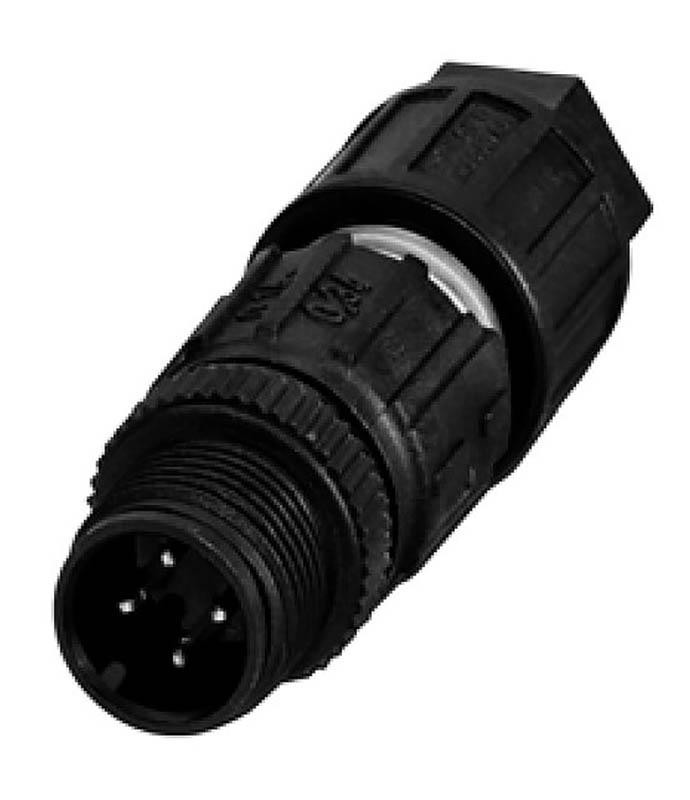

Male Connector, Field Attachable, QUICKON-ONE Connector, M12 Straight 4-Pin, IP65/67
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features include:
- Number of pins: 4
- Connection 1: Male connector
- Construction type 1: Straight
- Threading 1: M12
- Operating voltage: max. 125 V
- Operating current: max. 4 A
- Volume resistance: < 5 mΩ
- Degree of protection: IP65/IP67
- Body: PA 66, black
- Sleeve connector: plastic
- Seal: NBR
- Core insulation: PVC/PE/P
- Sheath diameter: 3.5 - 6 mm
- Cores: ∅ 0.7 - 1.6 mm incl. insulation
- Cross-section: 0.14 - 0.34 mm2
- Cable construction: Class 2-6 in accordance with VDE 0295
- Mounting: Max. tightening torque on the coupling nut: ≤ 0.8 Nm
Technical Information:
