13385744371
Pfannenberg

13385744371

Alt: 133 8574 4371, DTS 3261

$6,896.25

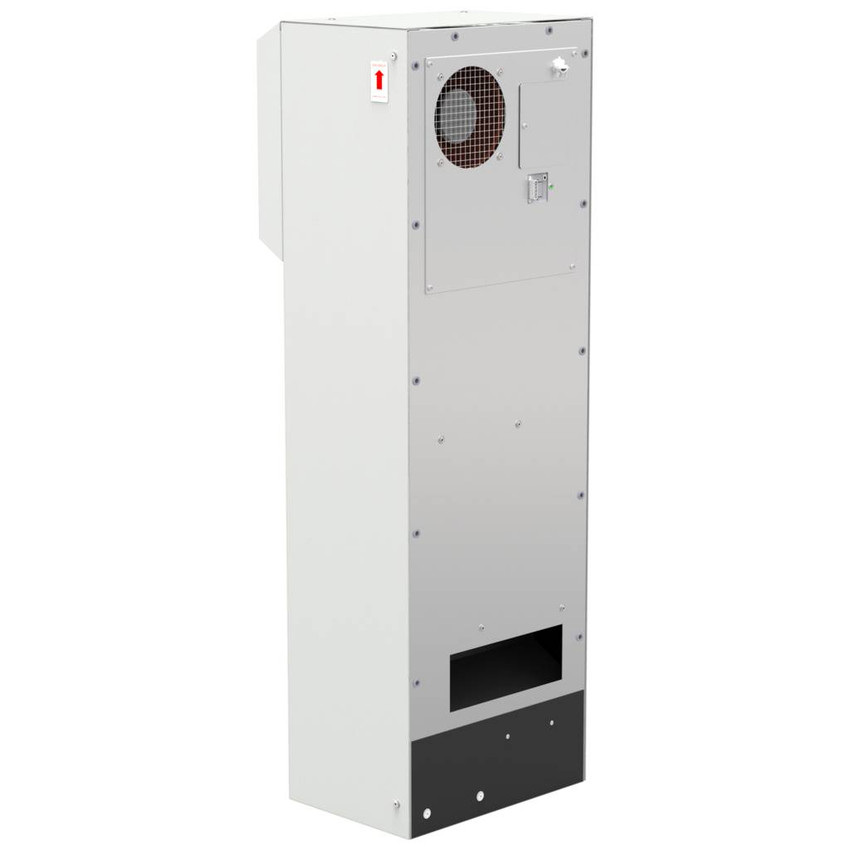

Air Conditioner, NEMA 3R/4, Side Mount, 115VAC, 7000-8500 BTU, ANSI 61 Gray, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck

Weight:
123.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.

Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.

They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.

Features Include:

  • Frequency: 60Hz
  • Voltage: 115 V
  • Power Consumption: 1680 W
  • Nominal (Run) Current (@35A/35A): 11.6
  • Fuse (max) Class CC: 20
  • Noise Level dB(A): <73
  • Cooling Capacity A35°C(95°F)/A35°C(95°F): 2000 W / 6825 BTU/h
  • Cooling Capacity A50°C(122°F)/A35°C(95°F): 1850 W / 6313 BTU/h
  • Protection Rating: Type 4/4x IP56 (EN 60529)
  • Unit Construction: Sheet steel
  • Corrosion Protection: G90 galvanized, electrostatically powder coated: RAL 7035 or ANSI61, Baked (200°C / 392°F)

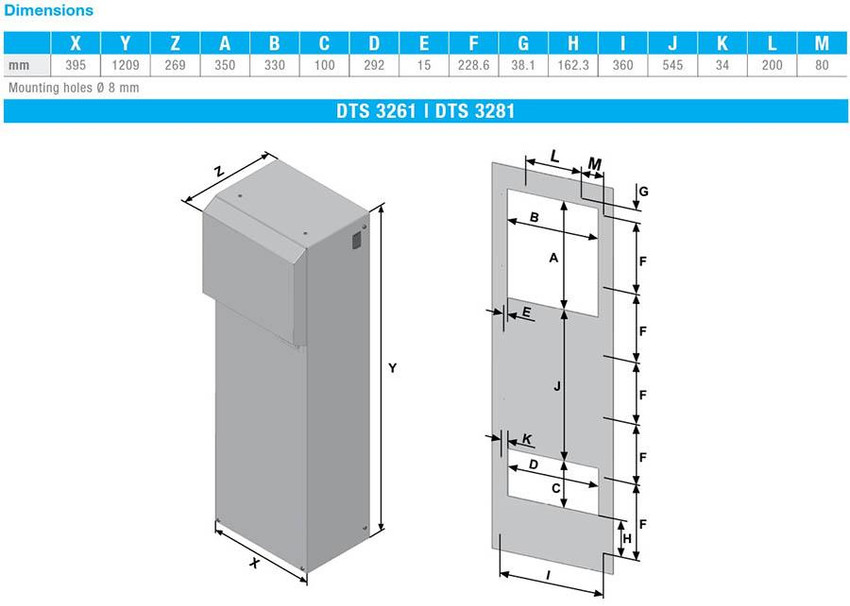

  • Height: 47.6 in. (1209 mm)
  • Width: 15.6 in. (395 mm)
  • Depth: 10.6 in. (269 mm)
