13385741371
Alt: 133 8574 1371, DTS 3261
$6,963.75

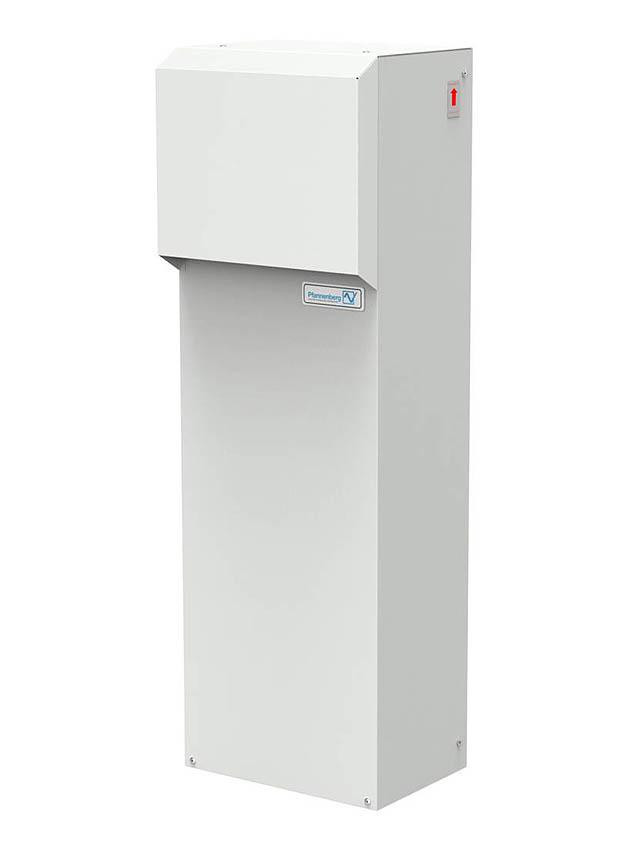

Air Conditioner, NEMA 3R/4, Side Mount, 230VAC, 7000-8500 BTU, ANSI 61 Gray, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Frequency: 50/60Hz
- Voltage: 230 V
- Power Consumption: 1425 W
- Nominal (Run) Current (@35A/35A): 5.6
- Fuse (max) Class CC: 10
- Noise Level dB(A): <73
- Cooling Capacity A35°C(95°F)/A35°C(95°F): 2000 W / 6825 BTU/h
- Cooling Capacity A50°C(122°F)/A35°C(95°F): 1850 W / 6313 BTU/h
- Protection Rating: Type 4/4x IP56 (EN 60529)
- Unit Construction: Sheet steel
- Corrosion Protection: G90 galvanized, electrostatically powder coated: RAL 7035 or ANSI61, Baked (200°C / 392°F)
- Height: 47.6 in. (1209 mm)
- Width: 15.6 in. (395 mm)
- Depth: 10.6 in. (269 mm)
Technical Information:
- Pfannenberg DTS 3261 | DTS 3281 Cooling Unit Datasheet
- Pfannenberg DTS 32xx Cooling Unit Cutout
- Pfannenberg DTS 3241 | DTS 3261 | DTS 3281 230V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Selecting the Optimal Thermal Management Technology: A Guide
- Pfannenberg Thermal Management Catalog
