13385444375
Alt: 133 8544 4375, DTS 3161
$4,942.50

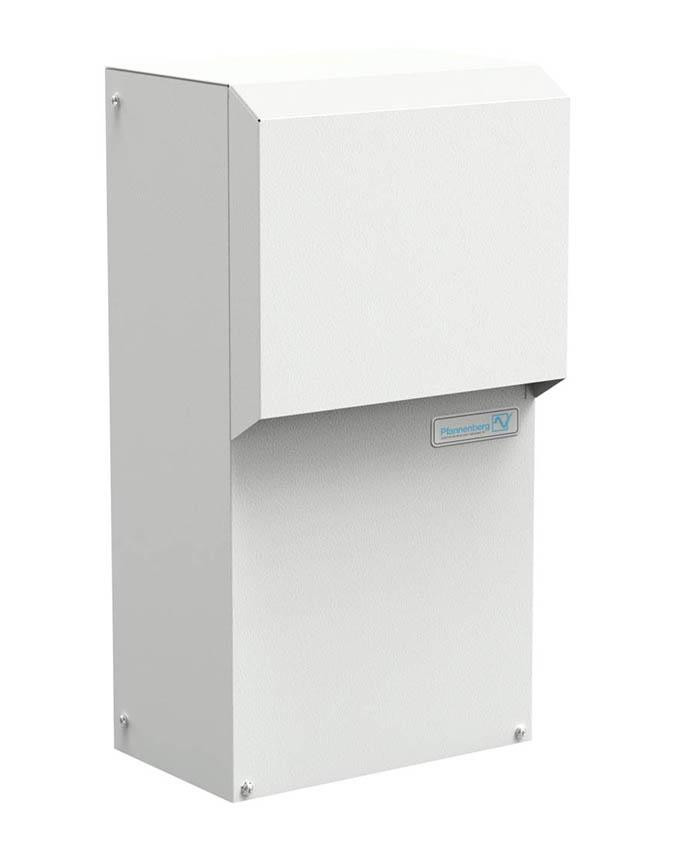

Air Conditioner, NEMA 3R/4, Side Mount, 115VAC, 3000-4000 BTU, RAL 7035 Light Gray, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Frequency: 60Hz
- Voltage: 115 V
- Power Consumption: 845 W
- Nominal (Run) Current (@35A/35A): 7.0
- Fuse (max) Class CC: 15
- Noise Level dB(A): <70
- Cooling Capacity A35°C(95°F)/A35°C(95°F):1200 W / 4100 BTU/h
- Height: 29.46 in. (748 mm)
- Width: 15.55 in. (395 mm)
- Depth: 9.3 in. (237 mm)
- Protection Rating: Type 3R/4 IP56 (EN 60529)
- Unit Construction: G90 galvanized, electrostatically powder coated: RAL 7035 or ANSI61, Baked (200°C / 392°F)
Technical Information:
- Pfannenberg DTS 3161 | DTS 3181 Cooling Unit Datasheet
- Pfannenberg DTS 31x1 Cooling Unit Cutout
- Pfannenberg DTS 3141/3161/3181‚ 115/230V Standard-Controller Technical Data
- Pfannenberg DTS 3141/3161/3181‚ 400/460V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Cooling Unit Operation Manual
- Pfannenberg DTS Cooling Unit Project Manual Guide
