13384136371
Alt: 133 8413 6371, DTS 3461C
$8,806.50

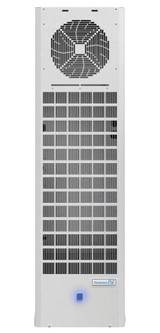

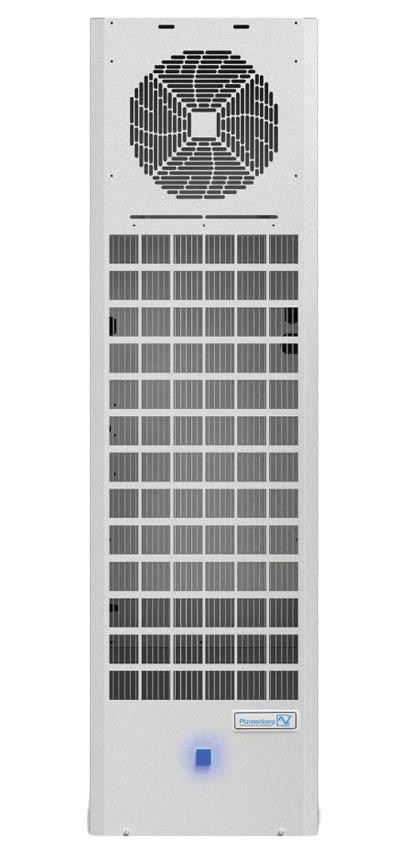

Air Conditioner, NEMA 3R/4, Side Mount, 460VAC, 15000-21000 BTU, ANSI 61 Gray, Low Ambient with Heater, Cannot Ship UPS, Drop Ship Only via Truck
- Weight:
- 210.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.
Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.
They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.
Features Include:
- Frequency: 60Hz
- Voltage: 400/460 V
- Power Consumption: 2843 Watts
- Nominal (Run) Current (@35A/35A): 5.18
- Fuse (max) Class CC: 12
- Noise Level dB(A): <73
- Cooling Capacity A35°C(95°F)/A35°C(95°F): 7475 Watt / 25526 BTU/hr
- Cooling Capacity A50°C(122°F)/A35°C(95°F): 4928 Watt / 16828 BTU/hr
- Protection Rating: NEMA Type 12 / IP54 (EN 60529
- Unit Construction: Sheet steel
- Corrosion Protection: G90 galvanized, electrostatically powder coated: RAL 7035 or ANSI61, Baked (200°C / 392°F)
- Height: 57.2 in. (1452 mm)
- Width: 15.8 in. (400 mm)
- Depth: 16.1 in. (409 mm)
Technical Information:
