13383836371
Alt: 133 8383 6371, DTS 3265
$7,892.25

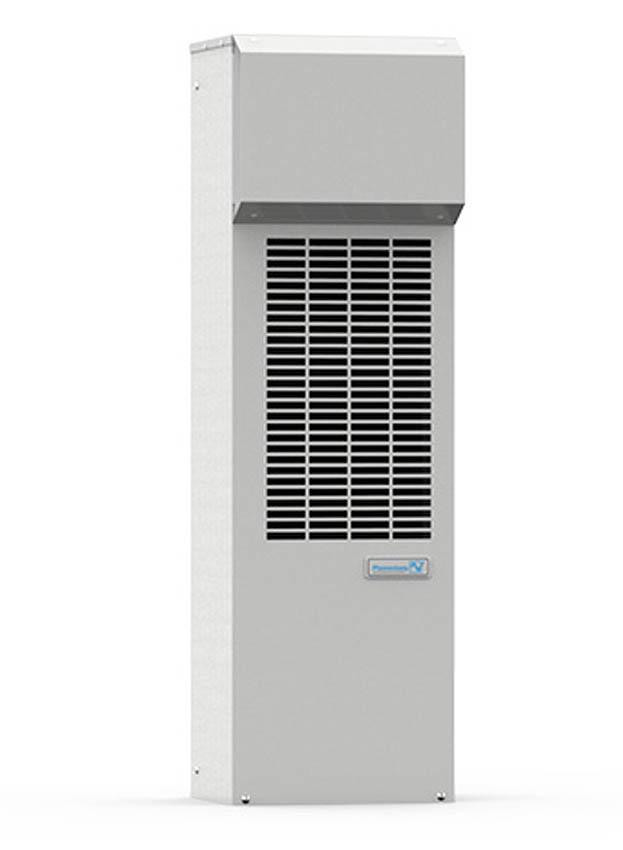

Air Conditioner, NEMA 3R/4, Side Mount, 460VAC, 9000-12000 BTU, ANSI 61 Gray, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Frequency: 50/60Hz
- Voltage: 400/460 V
- Power Consumption: 1700 W
- Nominal (Run) Current (@35A/35A): 3.14
- Fuse (max) Class CC: 6
- Noise Level dB(A): <73
- Cooling Capacity A35°C(95°F)/A35°C(95°F): 3500 W / 12000 BTU/h
- Cooling Capacity A50°C(122°F)/A35°C(95°F): 2400 W / 8000 BTU/h
- Protection Rating: Type 3R/4 IP 56 (EN 60529)
- Unit Construction: Sheet steel
- Corrosion Protection: G90 galvanized, electrostatically powder coated: RAL 7035 or ANSI61, Baked (200°C / 392°F)

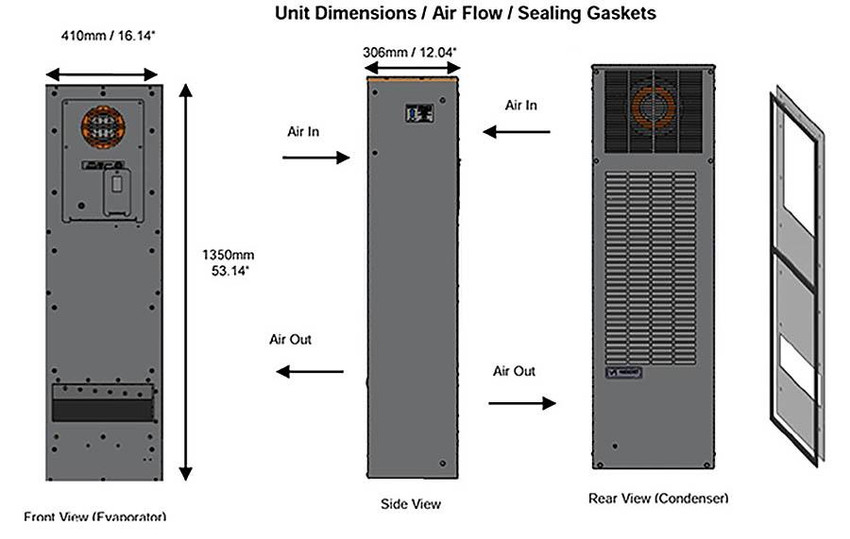

- Height: 53 in. (1347 mm)
- Width: 16 in. (406 mm)
- Depth: 11.9 in. (301 mm)
Technical Information:
- Pfannenberg DTS 32x5 Cooling Unit Cutout
- Pfannenberg DTS 3245/65/85‚ 400V/460V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Selecting the Optimal Thermal Management Technology: A Guide
- Pfannenberg Thermal Management Catalog
