13383836178
Alt: 133 8383 6178, DTS 3285
$9,318.00

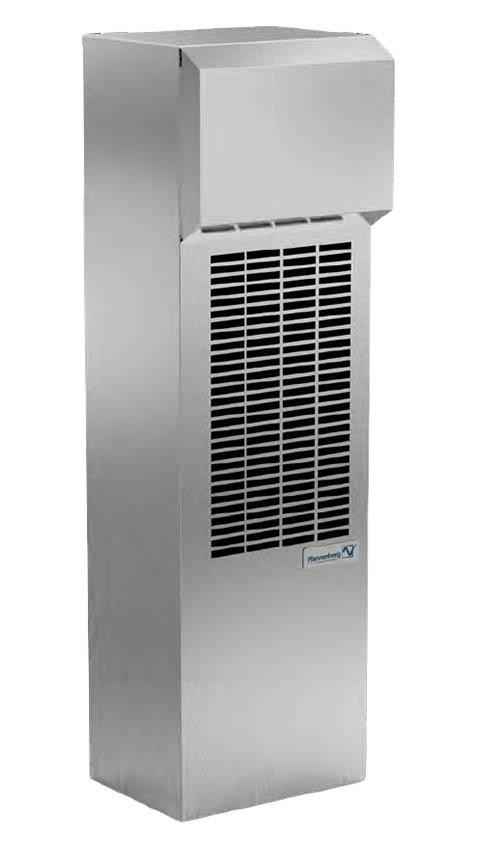

Air Conditioner, NEMA 4/4X, Side Mount, 460VAC, 9000-12000 BTU, 304 Stainless Steel, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck
- Weight:
- 150.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.
Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.
They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.
Features Include:
- Frequency: 50/60Hz
- Voltage: 230 V
- Power Consumption: 1700 W
- Nominal (Run) Current (@35A/35A): 3.14
- Fuse (max) Class CC: 6
- Noise Level dB(A): <73
- Cooling Capacity A35°C(95°F)/A35°C(95°F): 3500 W / 12000 BTU/h
- Cooling Capacity A50°C(122°F)/A35°C(95°F): 2400 W / 8000 BTU/h
- Protection Rating: Type 4/4X IP 56 (EN 60529)
- Unit Construction: 304 stainless steel
- Height: 53 in. (1347 mm)
- Width: 16 in. (406 mm)
- Depth: 11.9 in. (301 mm)
Technical Information:

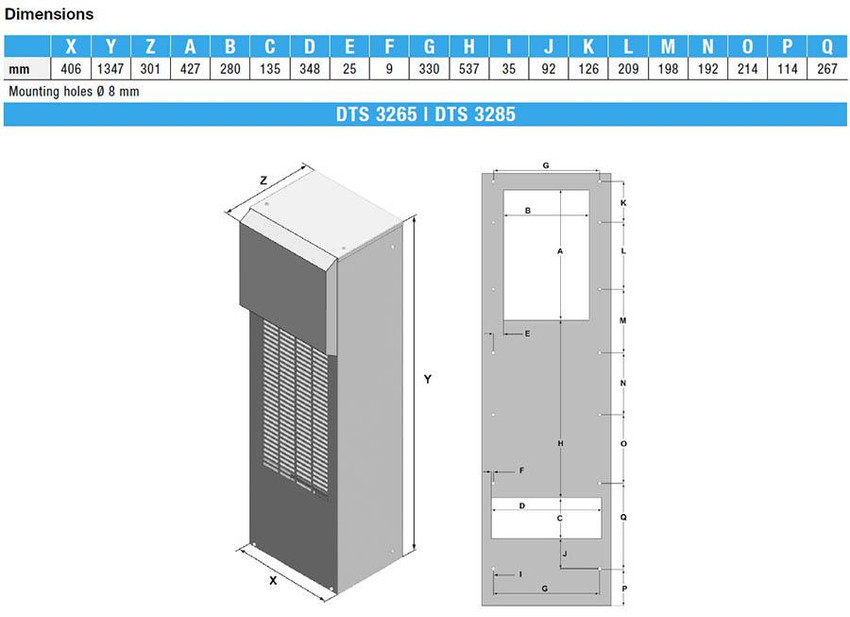

- Pfannenberg DTS 32x5 Cooling Unit Cutout
- Pfannenberg DTS 3245/65/85‚ 400V/460V Standard-Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Selecting the Optimal Thermal Management Technology: A Guide
- Pfannenberg Thermal Management Catalog
