13383644375
Alt: 133 8364 4375, DTS 3165
$5,266.50

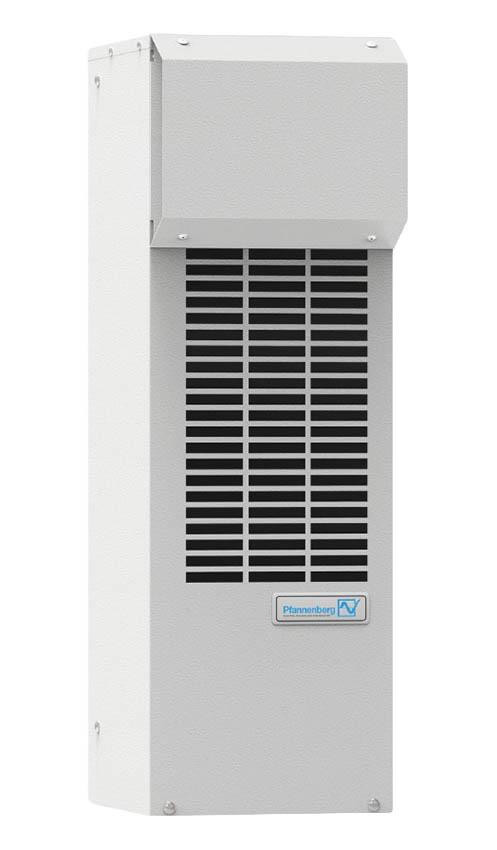

Air Conditioner, NEMA 3R/4, Side Mount, 115VAC, 5000-7000 BTU, RAL 7035 Light Gray, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck
- Weight:
- 108.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.
Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.
They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.
Features Include:
- Voltage: 115 VAC 60 Hz
- Power Consumption (W): 1000
- Frequency: 60 Hz
- Nominal (Run) Current (@35A/35A): 8.57
- Fuse (max) Class CC: 15
- Noise Level dB(A): <70
- Dimensions (H x W x D): 36 in.(914 mm) x 12 in.(305 mm) x 12 in.(305 mm)
- NEMA Type 12 (Model DTS 3145) with powder-coated G-90 galvanized steel cabinet
- Condensate Management: Active condensate evaporation system with safety overflow
Technical Information:

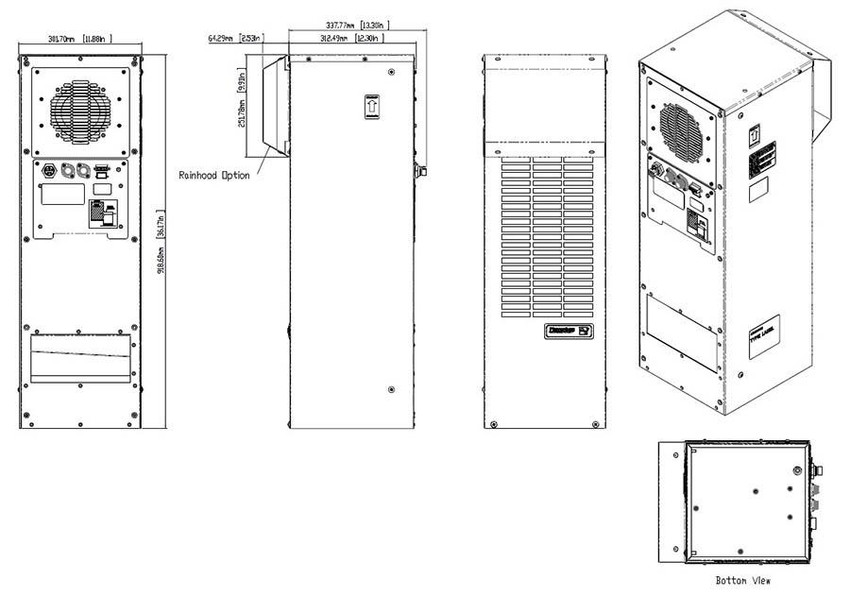

- Pfannenberg DTS 31x5 Air Conditioner Unit Dimensional Drawing
- Pfannenberg 3145/65/85‚ 115V / 230V / 400V / 460V Cooling Unit Standard Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Selecting the Optimal Thermal Management Technology: A Guide
- Pfannenberg Thermal Management Catalog
