13383639375
Alt: 133 8363 9375, DTS 3165
$5,334.75

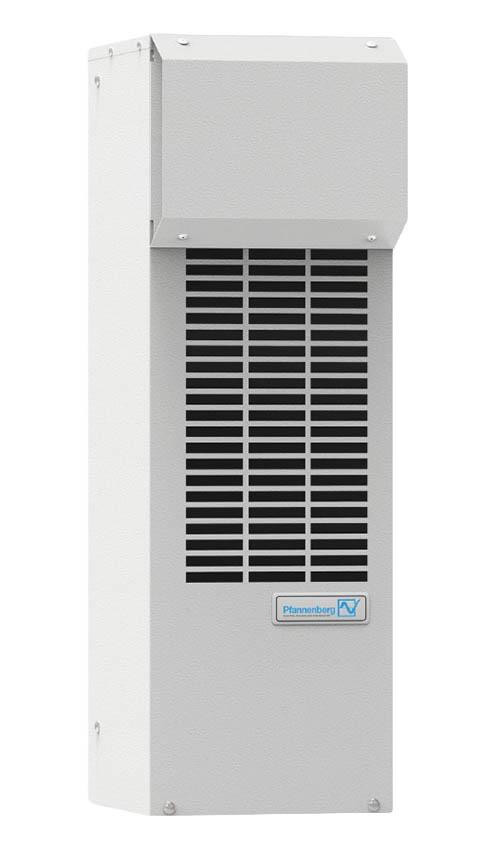

Air Conditioner, NEMA 3R/4, Side Mount, 230VAC, 5000-7000 BTU, RAL 7035 Light Gray, with 900W Enclosure Heater and Thermostat, Cannot Ship UPS, Drop Ship Only via Truck
- Weight:
- 108.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pfannenberg is a global manufacturer of thermal management products, liquid cooling solutions and signaling technologies.
Founded in 1954 by Otto Pfannenberg, they invented the Filterfan® in 1958 and continue to be the leader in managing temperature in electrical enclosures.
They have international headquarters in Hamburg, Germany and North-American headquarters in Lancaster, NY.
Features Include:
- Voltage: 230 VAC 60 Hz
- Power Consumption (W): 1020
- Frequency: 50/60 Hz
- Nominal (Run) Current (@35A/35A): 5.58
- Fuse (max) Class CC: 10
- Noise Level dB(A): <70
- Dimensions (H x W x D): 36 in.(914 mm) x 12 in.(305 mm) x 12 in.(305 mm)
- NEMA Type 3R/4 (Model DTS 3165) with powder-coated G-90 galvanized steel cabinet and epoxy-coated condenser coil and refrigeration piping for corrosion resistance, and a weather-protective rain hood.
- Condensate Management: Active condensate evaporation system with safety overflow
Technical Information:
- Pfannenberg DTS 31x5 Air Conditioner Unit Dimensional Drawing
- Pfannenberg 3145/65/85‚ 115V / 230V / 400V / 460V Cooling Unit Standard Controller Technical Data
- Pfannenberg DTS 3000 Series Technical Manual
- Pfannenberg DTS Series Project Manual Guide
- Pfannenberg Selecting the Optimal Thermal Management Technology: A Guide
- Pfannenberg Thermal Management Catalog
