Product image is representative only, please verify specifications.
09780
Alt: 9780
$132.34

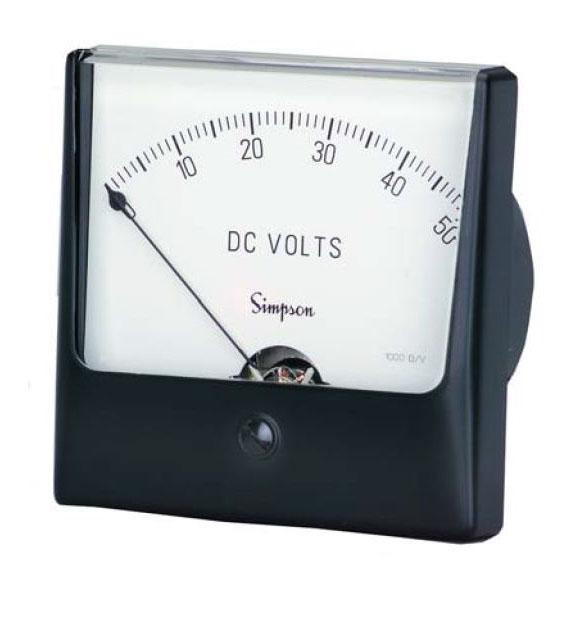

1327A Wide-Vue Analog Panel Meter, 0-50VDC
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Simpson Electric has been manufacturing analog and digital panel meters, as well as test instruments and equipment, since 1927.
They are well known for their 260 volt-ohm-millimeter and remain proudly made in the USA.
Features Include:
- Accuracy: ±2% F.S. (Iron-Vane), ±3 F.S. (Rectified)
- Tracking: ±3%
- Shielding: Calibration is unaffected by magnetic panel mounting
- Response Time: 1.5 seconds maximum
- Overload (1 second): 10 times F.S.
- Continuous: 1.5 times F. S.
- Dial: Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
- Resistance: ±15% of meter impedance
- Operating Temperature: -4°F to +149°F (-20°C to +65°C)
- Case: High density black plastic
- Pointer: Model 1212: black lance; all other models: Spade with black matte finish
Repeatability:
- 2%: AC Current, DC Process
- 3%: AC Voltage, DC Voltage, Wattmeters
- 0.5%: DC Current
