132358
Alt: NBB20-L2M-A2-V1
$101.63

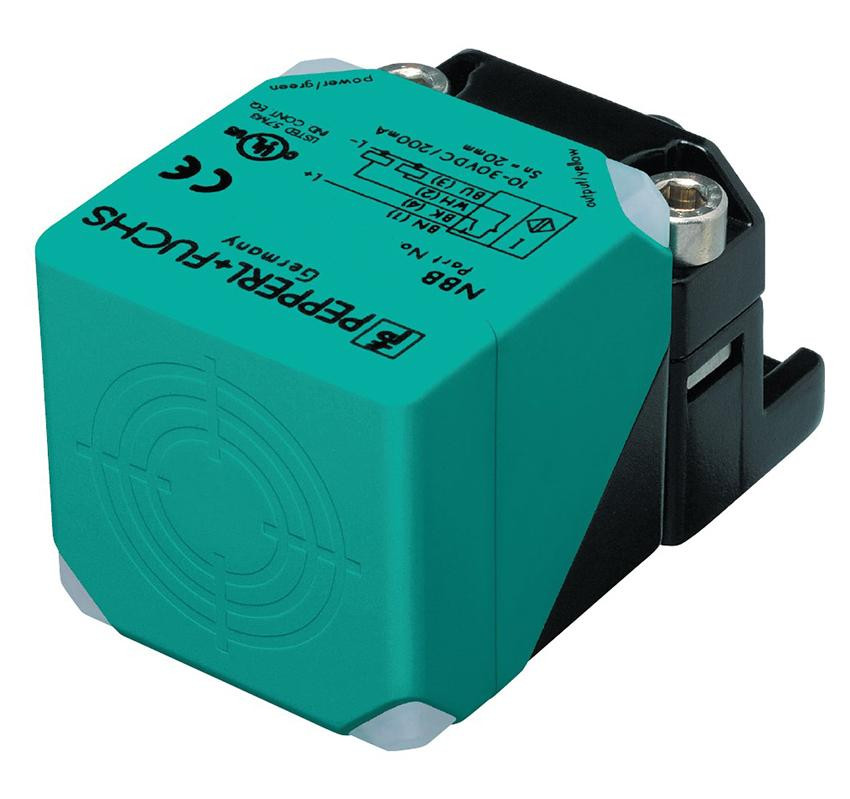

Inductive Proximity Sensor, DC
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching function: Complementary
- Rated Operating Distance: 20 mm
- Output Type: PNP
- Installation: flush
- Assured Operating Distance: 0 - 16.2 mm
- Actual Operating Distance: 18 - 22 mm
- Output Polarity: DC
- Operating Voltage: 10 - 30 V DC
- Operating Current: 0 - 200 mA
- Switching Frequency: 0 - 440 Hz
- Connection Type: Connector plug M12 x 1 , 4-pin
- Housing Material: PA-GF35, metal base Xylan coated, metal mounting flange Xylan coated.
- Sensing Face: PA-GF35
- Degree of Protection: IP69K
Technical Information:
