131306
Alt: NBB5-18GM60-WS-V12
$164.01

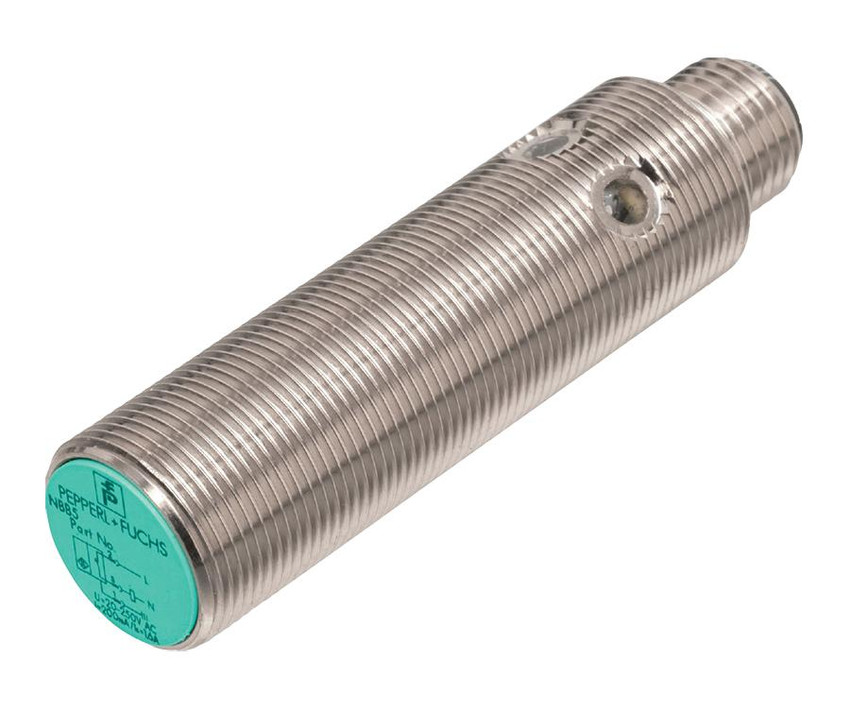

Inductive Proximity Sensor, 2-Wire AC, Flush Installation, 20-253V, 5mm Range, 5 to 200mA, Connector Plug (1/2"-20 UN, 3-Pin), Nickel Plated Brass Housing, PBT Sensing Face, Ambient Temperature: -25 to 70 °C (-13 to 158 °F), IP67
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching function: Normally open (NO)
- Output type: Two-wire
- Rated operating distance: 5 mm Installation flush
- Output polarity: AC
- Assured operating distance: 0 - 4.05 mm
- Actual operating distance: 4.5 - 5.5 mm typ. 5 mm
- Output type: 2-wire
- Operating voltage: 20 - 253 V
- Switching frequency: 0 - 20 Hz
- Connection type: Connector plug 1/2"-20 UN , 3-pin
- Housing material: brass, nickel-plated
- Sensing face: PBT
- Degree of protection: IP67
Technical Information:
