131010264
Alt: TZM (Was # 101010264)
$396.00

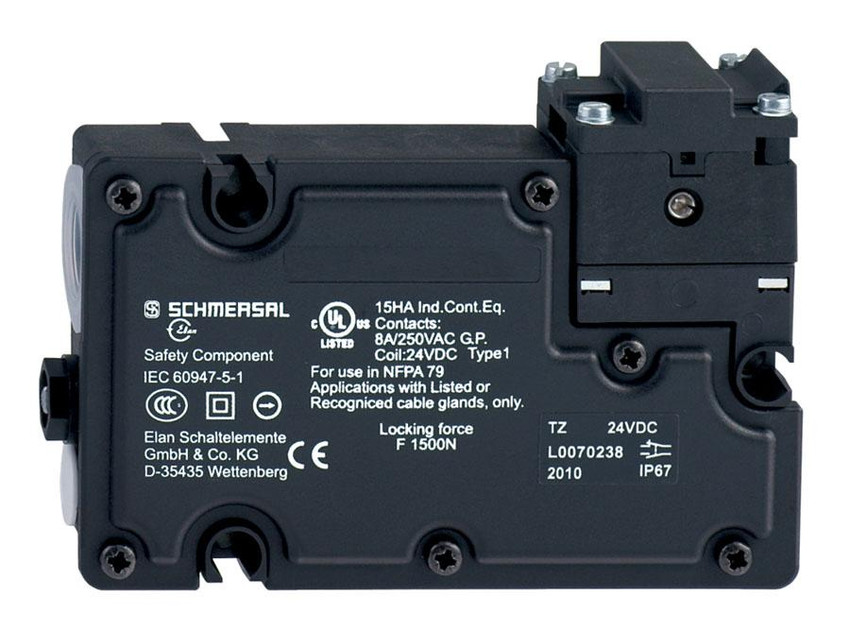

Safety Interlock Switch, Keyed Solenoid Locking
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal is one of the largest manufacturers of safety switching devices in the world. Their products includes safety switches, position switches, guarding devices, fail-safe monitors and timers as well as safety controllers, safety light curtains and foot switches.
Schmersal was founded in 1945 by brothers Kurt Andreas and Ernst Schmersal.
Series Features Include:
- Purpose: The TZM... / TZF solenoid interlock has been designed to prevent movable safety guards in conjunction with the control part of a machine from being opened before hazardous conditions have been eliminated.
- Enclosure: glass-fiber reinforced thermoplastic, self-extinguishing
- Actuator and locking bolt: Galvanised steel / zinc die-cast
- Contact material: Silver
- Protection class: IP67
- Contact type: change-over with double break Zb, or 2 NC contacts, galvanically separated contact bridges
- Switching system: IEC 60947-5-1: Slow action, NC contacts with positive break
- Connection: screw terminals
- Cable type: solid and stranded wire
- Cable section: max. 2.5 mm² (incl. conductor ferrules)
- Cable entry: M20
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 320 V
- Rated operating current/voltage Ie/Ue: 4 A / 230 VAC; 4 A / 24 VDC
- Max. fuse rating: 4 A gG D-fuse
- Required rated short-circuit current: 1000 A
- Rated control voltage Us: 24 VDC, 110 VAC: 50 / 60 Hz, 230 VAC: 50 / 60 Hz
- Power consumption: max. 8.5 W
