Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
Effective detection range: 0 - 12 m
Threshold detection range: 17 m
Light source: laser diode
Light type: modulated visible red light
Polarization filter: yes
Diameter of the light spot: approx. 5 mm x 12 mm at 15 m detection range
Function indicator: 2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted
Control elements: rotary switch for light/dark, sensitivity adjuster
Operating voltage: 10 - 30 V DC
Switching type: light/dark on switchable
Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected

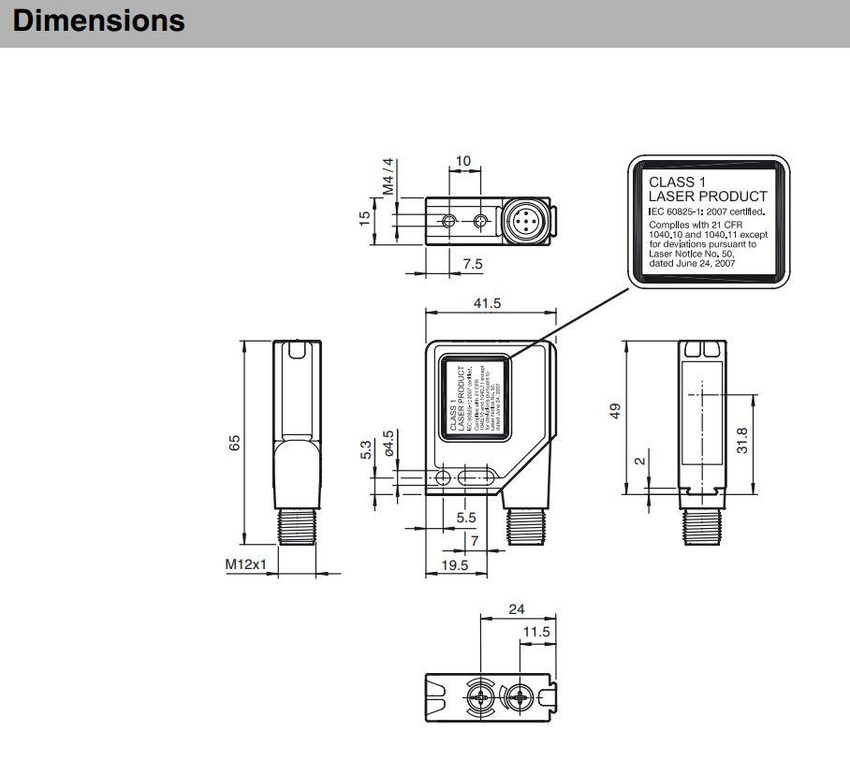

Housing width: 41.5 mm
Housing height: 49 mm
Housing depth: 15 mm
Degree of protection: IP67
Connection: Metal connector, M12, 5-pin, 90° rotatable
