Weg
CWCA0-04-00C03
Mini Contactor Control Relay, 10 Amp, No Main Contacts, 24VDC, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
$17.15
CWCA0-13-00C03
Alt: 12486871
$17.15
Mini Contactor Control Relay, 10 Amp, 1NO/3NC, No Main Contacts, 24VDC, Screw Terminal, IP20, 2.28 x 1.77 x 2.05" (HWD), CWC Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Our WEG CWC series of mini contactors are a compact and powerful solution for circuit switching and control operation.
This series is available in three pole and four pole up to 15hp at 460VAC (22A). This series features more horsepower for its size than any other miniature contactor on the market!
- CWC0: Miniature power contactors
- CWCA0: Miniature contactor control relay with AC or DC coil
Features Include:
- Rated current: 10 A
- Control voltage: 24V DC
- Main contact: No main contacts
- Auxiliary Contacts: 1 NO + 3 NC
- Terminal type: Screw
- Rated operational voltage Ue - IEC 60947-4-1: 690 V
- Rated operational voltage Ue - UL/CSA: 600 V

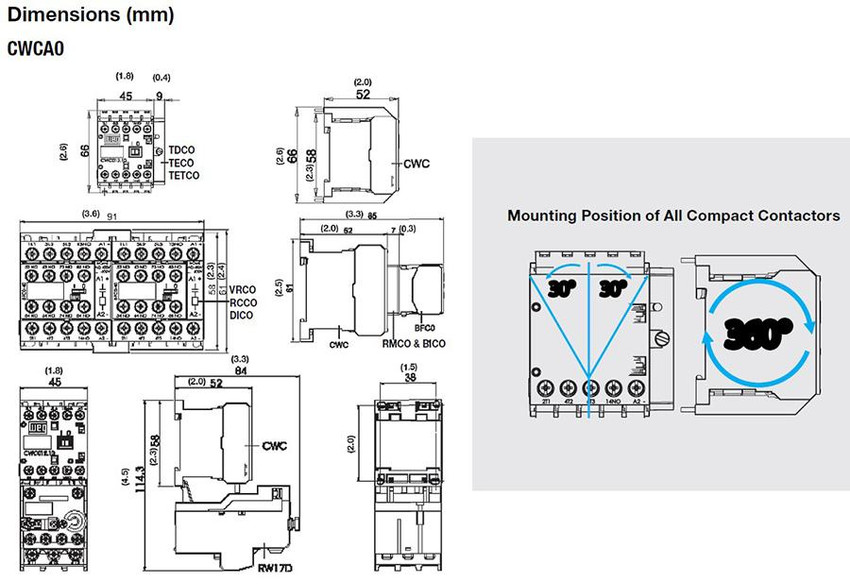

- Height: 58 mm (2.28 in)
- Width: 45 mm (1.77 in)
- Depth: 52 mm (2.05 in)
- Developed for different applications on control circuits. They can be directly mounted on DIN rail EN 50.002 or tightened with screws, and offer compact size and a full line of accessories.
- The auxiliary minicontactors and contactors of the CAWB, CWCA0 and CAW04 line are designed for a variety of applications in control circuits.
