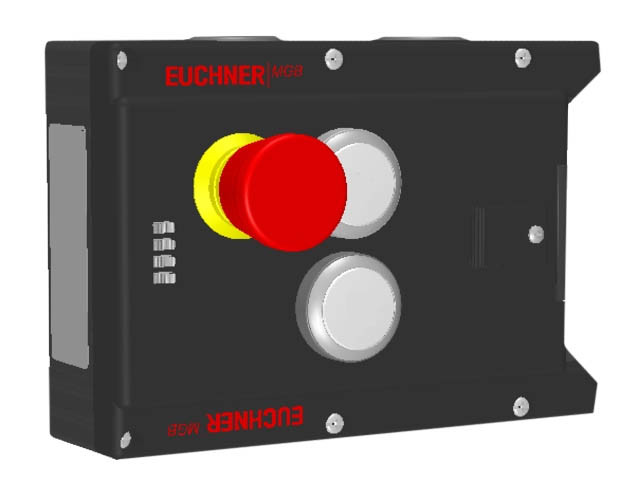

Multifunctional Gate Box Locking Module, Locking without Guard Locking, E-Stop and 2 illuminated Pushbuttons with Lens Set (6 Pieces, 5 Colors), Cable Entry, Unicode, Can be Connected in Series with other AR Devices (e.g. CES-AR and CET-AR)
The Euchner CET series is used to guard lock for perseonnel protection in accordance with EN 14119.
This series offers very high guard locking of up to 6500N, 2 safety outputs, a head that can be rotated in 90° steps and it is IP67 rated. The metal housing and safety category 4 and PL e according to EN ISO 13849-1 make this the right safety switch for you!
CET-AP - Single device
Safety switch with guard locking and safe guard lock monitoring
Integrated CES-AP electronics
No special evaluation unit required
Safety category 4 and PL e in accordance with EN ISO 13849-1 with any mounting position, head down/up/horizontal
Two safe semiconductor outputs and signal output OUT
Safety outputs with clocking
Input (optional) for connection of feedback loop and start button
CET-AR - For connection of up to 20 AR devices
Safety switch with guard locking and safe guard lock monitoring
Integrated CES-AR electronics
No special evaluation unit required
Series connection of up to 20 devices (CES-AR, CET-AR, MGB-AR, ...) in an AR chain possible
Safety category 4 and PL e according to EN ISO 13849-1 with any mounting position, head down/top/level
Two safe semiconductor outputs and signal output OUT
Safety outputs with clocking
Input (optional) for connection of feedback loop and start button
CET-AS - For direct connection to AS-Interface
ntegrated AS-i connection
Robust metal housing
Suitable for heavy doors
High tamper resistance
High protection class IP67
Detailed diagnosis with four LEDs (ASi/STATE, 2 colors each)
