Pfannenberg Outdoor Rated Filterfan® (NEMA 3R) is designed for your outdoor weather applications where falling rain, snow and UV degradation can cause issues with items within an enclosure.
Pfannenberg Outdoor Filterfans® are certified to TYPE 3R providing electrical enclosure with protection against ingress of falling dirt, harmful effects of rain, sleet, snow and external ice formation. Further, it features UV resistance plastic to prevent premature degradation from direct sunlight. Traditional outdoor solutions would require installation of a metal hood (rainhood) over the filter fan.
Features Include:
Outdoor weather ready, NEMA 3R
Patented tool-less 4 corner fastening system - fast installation, you can install in seconds!
Less frequent maintenance - fluted filter mat provides 3x longer service life
Highest system airflow compared to competitors filter fans! - best-in-class fan as well as optimized louvers
Prolong life - UV resistance plastic prevents degradation from direct sunlight
Low intial investment - traditional outdoor solutions require a metal hood (rainhood) over the filter fan
The outdoor rated Filterfan® is available in these series:
PF 22000 R - up to 38CFM
PF 32000 R - up to 65CFM
PF 42500 R - up to 94CFM

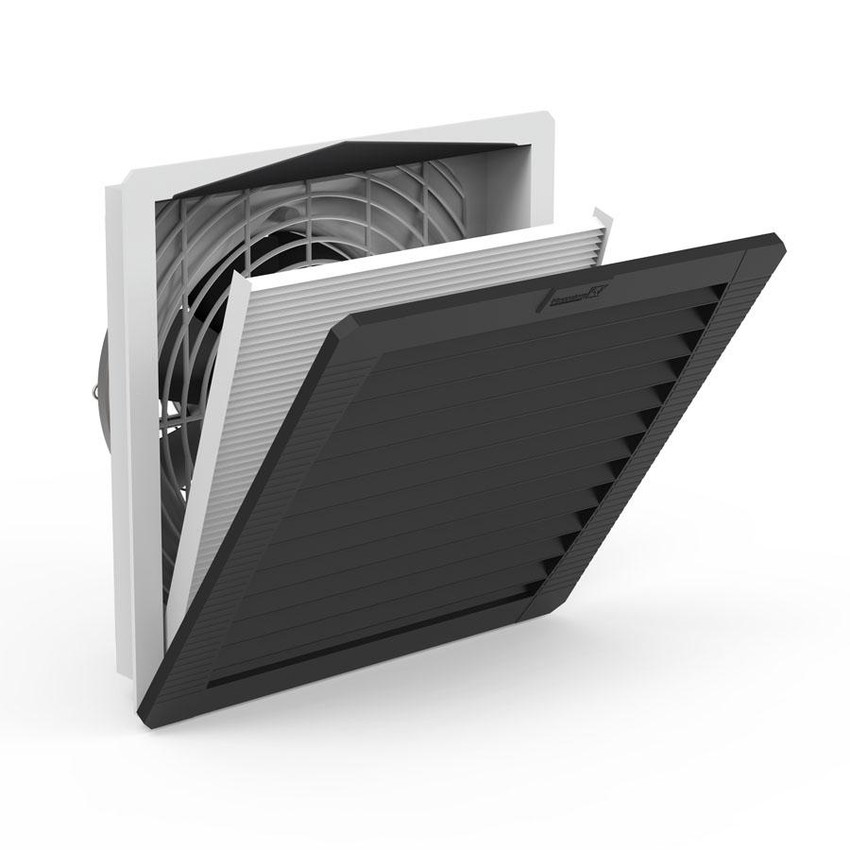

PF 43000 R - up to 155CFM
PF 65000 R - up to 297CFM
PF 66000 R - up to 462CFM
PF 67000 R - up to 560CFM
Ideal applications for an outdoor rated Filterfan®:
Pump panels for irrigation, water/waste water
Lighting control box for traffic, field/stadiums
Outdoor communication (IT) structures
Energy storage and charging systems
Transportation systems – Bridges, Highways, Tolls, Rail
Marshall Wolf Automation is an authorized stocking distributor for Pfannenberg!
Features Include:
Full Dimensions (W x H x D in): 9.92 x 9.92 x 4.69
Cut-Out Dimensions: 8.78 x 8.78 in (223 x 223 mm)
Power Consumption: 12 W
System of protection (UL 50): Type 3R - Fluted Filter
Filter Mat Quality Class: G4
Unimpeded Airflow: 155 CFM
Connection Type: Spring-Type Terminal
Bearing Type: Ball Bearing
Housing: Self-extinguishing, UL 94 VO injection-molded thermoplastic
