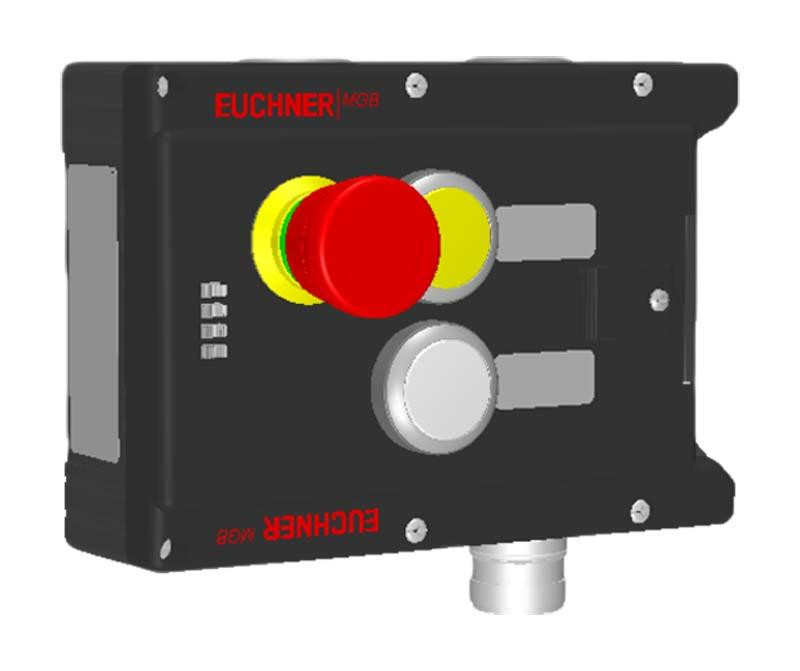

Multifunctional Gate Box Locking Module, Guard Locking with Guard Lock Monitoring, E-Stop and 2 Illuminated Pushbuttons, (Yellow, White), RC18 Plug Connector, Unicode, Release Monitoring, Includes Adhesive Labels, Can be connected in series
The Euchner CET series is used to guard lock for perseonnel protection in accordance with EN 14119.
This series offers very high guard locking of up to 6500N, 2 safety outputs, a head that can be rotated in 90° steps and it is IP67 rated. The metal housing and safety category 4 and PL e according to EN ISO 13849-1 make this the right safety switch for you!
CET-AP - Single device
Safety switch with guard locking and safe guard lock monitoring
Integrated CES-AP electronics
No special evaluation unit required
Safety category 4 and PL e in accordance with EN ISO 13849-1 with any mounting position, head down/up/horizontal
Two safe semiconductor outputs and signal output OUT
Safety outputs with clocking
Input (optional) for connection of feedback loop and start button
CET-AR - For connection of up to 20 AR devices
Safety switch with guard locking and safe guard lock monitoring
Integrated CES-AR electronics
No special evaluation unit required
Series connection of up to 20 devices (CES-AR, CET-AR, MGB-AR, ...) in an AR chain possible
Safety category 4 and PL e according to EN ISO 13849-1 with any mounting position, head down/top/level
Two safe semiconductor outputs and signal output OUT
Safety outputs with clocking
Input (optional) for connection of feedback loop and start button
CET-AS - For direct connection to AS-Interface
ntegrated AS-i connection
Robust metal housing
Suitable for heavy doors
High tamper resistance
High protection class IP67
Detailed diagnosis with four LEDs (ASi/STATE, 2 colors each)
Features Include:
Rated impulse withstand voltage: 1.5 kV
Rated insulation voltage: 30 V
Breaking capacity: max. 0.25 W
LED power supply: 24 V DC
Switching current: 1 - 100 mA
Output current: max. 50 mA
Output type Semiconductor outputs, p-switching, short circuit-proof
Operating voltage DC (UA): 24 V DC -15% - +10%
Connection Cable entries: Plug connector RC18
Degree of protection: IP65
Guard locking principle: Closed-circuit current principle
