113965
Alt: CET3-AR-CRA-AH-50F-SG-113965

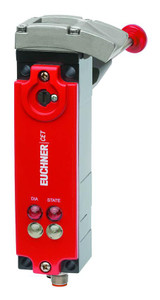

Safety Switch with Guard Locking and Integrated Evaluation Electronics, Locking Force up to 6,500 N, 2 Safety Outputs, 2 M12 (5-Pin and 8-Pin) Plug Connectors, Unicode, Door Monitoring Output, Teach-in Input, 75mm Escape Release, IP67
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
The Euchner CET series is used to guard lock for personnel protection in accordance with EN 14119.
This series offers very high guard locking of up to 6500N, 2 safety outputs, a head that can be rotated in 90° steps and it is IP67 rated. The metal housing and safety category 4 and PL e according to EN ISO 13849-1 make this the right safety switch for you!
CET-AP - Single device
- Safety switch with guard locking and safe guard lock monitoring
- Integrated CES-AP electronics
- No special evaluation unit required
- Safety category 4 and PL e in accordance with EN ISO 13849-1 with any mounting position, head down/up/horizontal
- Two safe semiconductor outputs and signal output OUT
- Safety outputs with clocking
- Input (optional) for connection of feedback loop and start button
CET-AR - For connection of up to 20 AR devices
- Safety switch with guard locking and safe guard lock monitoring
- Integrated CES-AR electronics
- No special evaluation unit required
- Series connection of up to 20 devices (CES-AR, CET-AR, MGB-AR, ...) in an AR chain possible
- Safety category 4 and PL e according to EN ISO 13849-1 with any mounting position, head down/top/level
- Two safe semiconductor outputs and signal output OUT
- Safety outputs with clocking
- Input (optional) for connection of feedback loop and start button
CET-AS - For direct connection to AS-Interface
- Integrated AS-i connection
- Robust metal housing
- Suitable for heavy doors
- High tamper resistance
- High protection class IP67
- Detailed diagnosis with four LEDs (ASi/STATE, 2 colors each)
