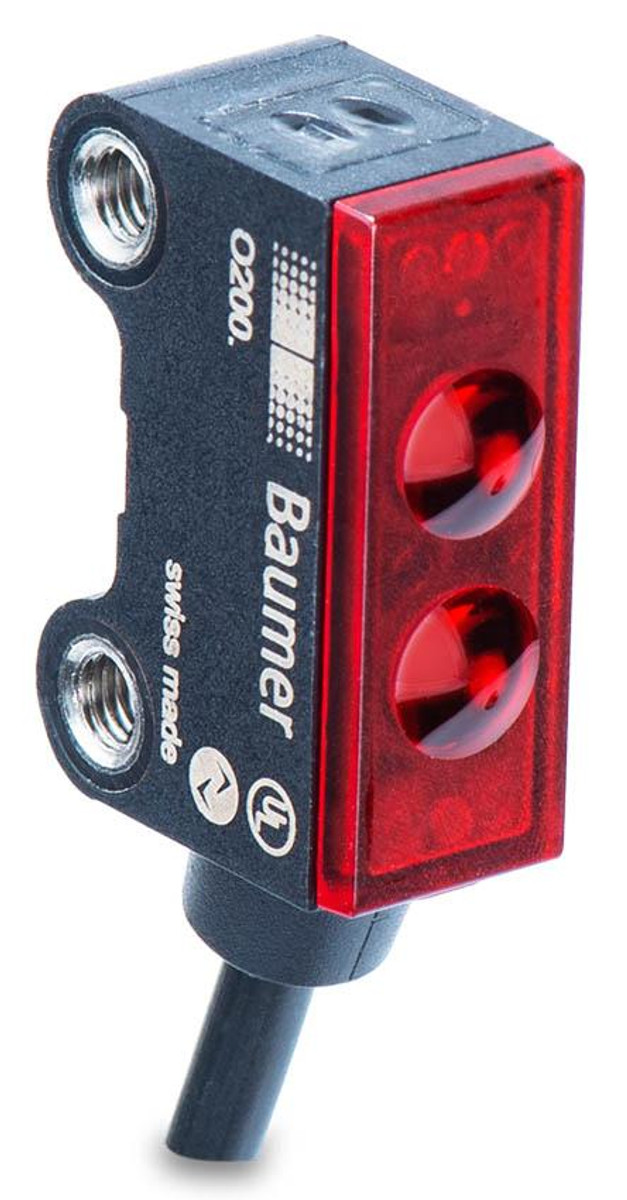

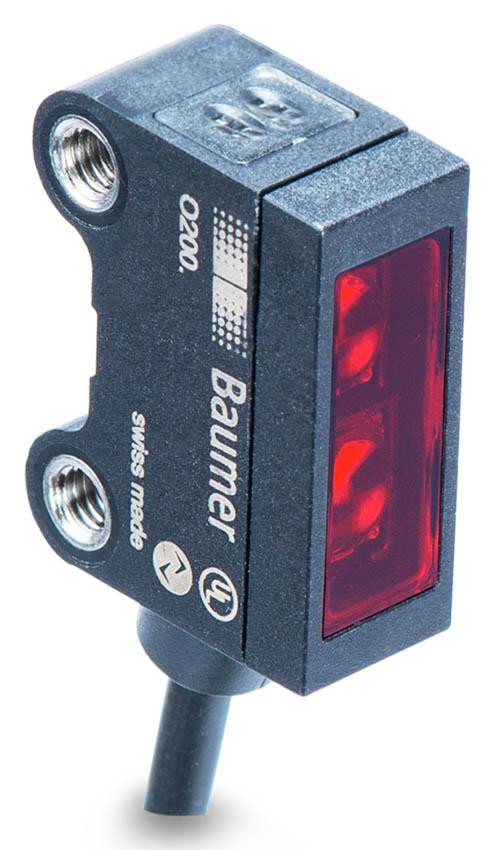

O200.ZR-PV1T.72NV/E026_H006

Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.



Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.

Features Include:

• Type: Intensity difference
• Light source: Pulsed red LED
• Sensing distance Tw: 20 - 200 mm
• Smallest object recognizable typ.: 2 mm at 100 mm
• Alignment / soiled lens indicator: Flashing output indicator
• Beam type: Point
• Voltage supply range +Vs: 10 - 30 VDC
• Current consumption max. (no load): 40 mA (@ 10 VDC)
• Current consumption typ.:16 mA (@ 24 VDC)
• Voltage drop Vd: < 2 VDC
• Output function: Light / dark operate
• Output circuit: PNP complementary

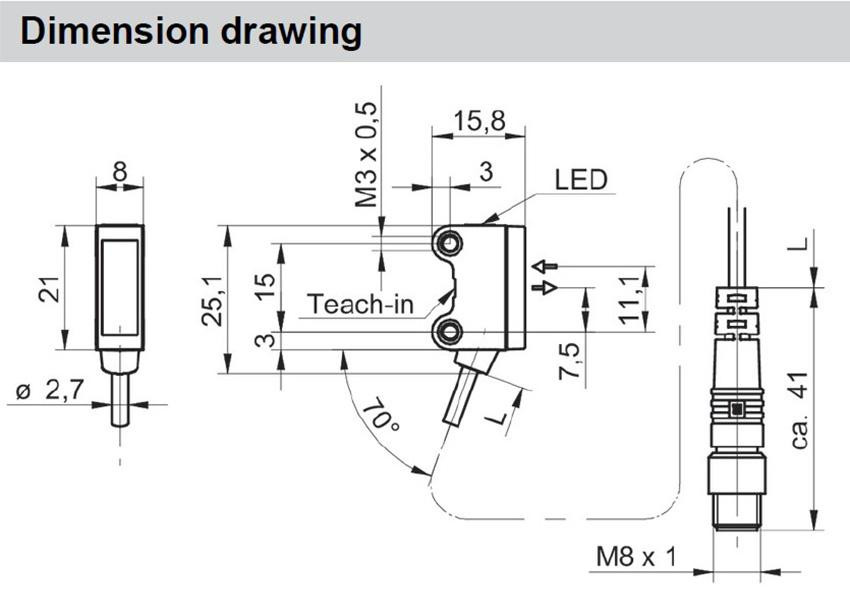

• Width / diameter: 8 mm
• Height / length: 25.1 mm
• Depth: 15.8 mm
• Type: Rectangular
• Mechanical mounting: Threaded sleeves M3 (stainless steel)
• Housing material: Plastic (ASA, PMMA)
• Front (optics): PMMA
• Connection types: Flylead connector M8 4 pin, L=200 mm
• Cable characteristics: PVC / PVC 4 x 0,08 mm²
