Baumer
O200.ZR-GW1J.72CV/E026_H006

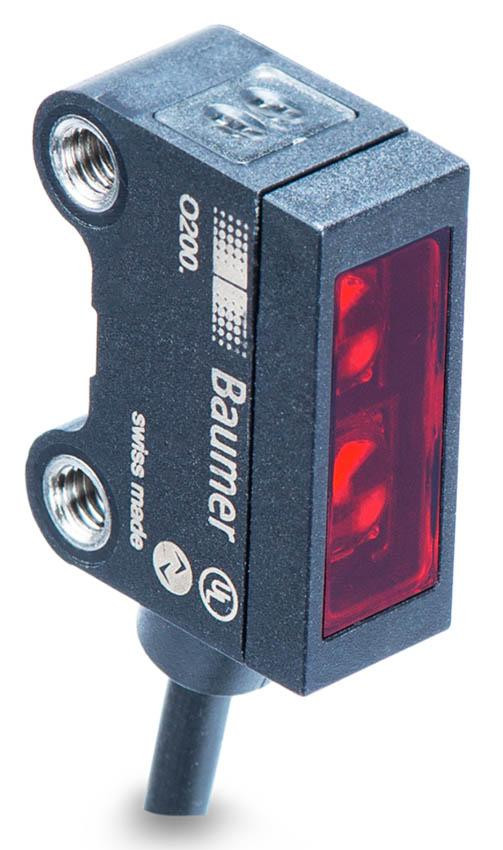

Photoelectric Diffuse Sensor with Intensity Difference, Pulsed Red LED
$174.00
O200.ZR-PV1T.72CV/E026_H006
Alt: 11231265
$174.00
Photoelectric Diffuse Sensor with Intensity Difference, Pulsed Red LED
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Type: Intensity difference
- Light source: Pulsed red LED
- Sensing distance Tw: 20 - 200 mm
- Smallest object recognizable typ.: 2 mm at 100 mm
- Alignment / soiled lens indicator: Flashing output indicator
- Beam type: Point
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 40 mA (@ 10 VDC)
- Current consumption typ.:16 mA (@ 24 VDC)
- Voltage drop Vd: < 2 VDC
- Output function: Light / dark operate
- Output circuit: PNP complementary
- Width / diameter: 8 mm
- Height / length: 25.1 mm
- Depth: 15.8 mm
- Type: Rectangular
- Mechanical mounting: Threaded sleeves M3 (stainless steel)
- Housing material: Plastic (ASA, PMMA)
- Front (optics): PMMA
- Connection types: Cable 4 pin, 2 m
