Baumer
OM70-P0070.HH0048.VI
High Performance Laser Distance Sensor, 30-70mm Measuring Distance Sd, 48mm Sweet Spot, OM70 Laser Point, Touch Display, RS485, 15-28VDC, Analog and RS485, IP67, 74 x 26 x 55mm (HWD)
$3,099.00
OM70-P0070.HH0048.EK
Alt: 11216522
$3,399.00
High Performance Laser Distance Sensor, 30-70mm Measuring Distance Sd, 48mm Sweet Spot, OM70 Laser Point, Webserver, Ethernet TCP/IP, 15-28VDC, Analog and Digital, IP67, 74 x 26 x 55mm (HWD)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

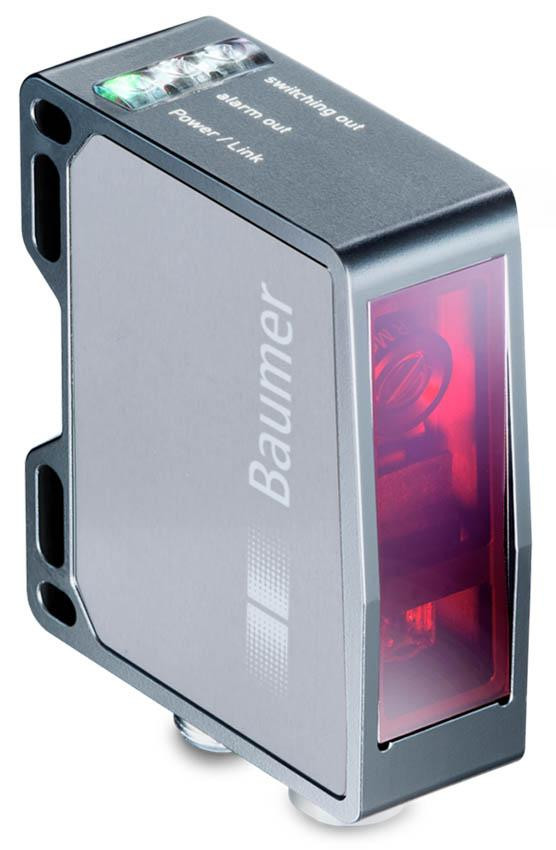

Do you need a high performance laser distance sensor? The Baumer OM70 is a great solution!
OM70 high-performance laser distance sensors offer an easy solution, even for demanding measurement applications. The sensor can be quickly adjusted to the measurement task via the integrated web interface. The latest interfaces additionally ensure very easy integration.
- Reliable and connected
- Best-in-class measurement performance even on demanding surfaces
- User friendly and intuitive sensor adjustment
- Simplified integration with standardized interfaces
- Additional sensor data for preventive maintenance
The OM70-P/L offers the highest precision at the closest ranges as well as reproducibility of long-distance measurements.
The OM70T has tolerance measurement for dimensional accuracy checks.
OM70 Series Features:
- Rectangular, front view
- Aluminum housing, glass front
- Connector type; M12 8-pin connector and/or M12 4-pin connector
- -10-50°C operating temperature
- IP67
- Dimensions 74x26x55mm (HxWxD)
- Available in laser point or laser point basic
Need More Information?:
- Baumer OM70-P0070.HH0048.EK Sensor Datasheet
- Baumer OM70-P0070.HH0048.EK Sensor Quickstart
- Baumer OM70 Series High Performance Distance Sensors with Ethernet Interface Operating Instructions
- Baumer OM70 Series Flyer
- Baumer Optical Distance Sensor Brochure
- Baumer Photoelectric Sensors Product Catalog
- Baumer Distance Measurement Product Overview
