$134.00
O200.RR-NV1Z.72NV
Alt: 11212603
$134.00

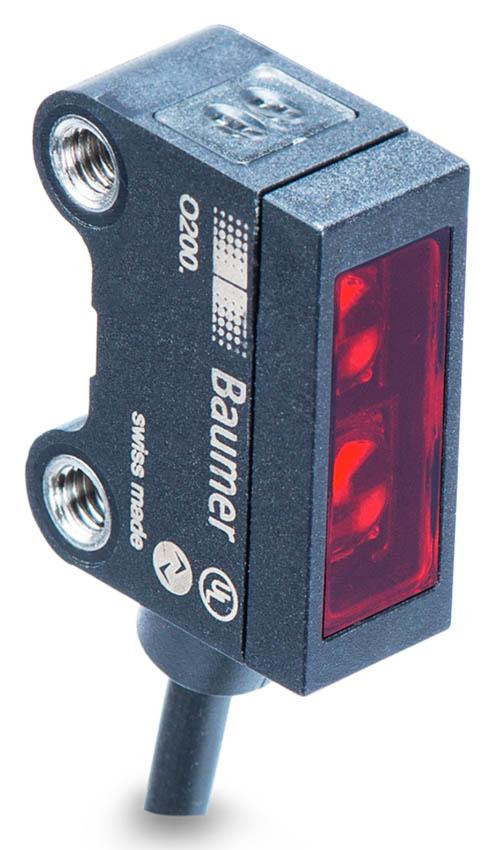

Photoelectric Retroreflective Sensor
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Type: Retro-reflective sensor
- Light source: Pulsed red LED
- Actual range Sb: 3 m
- Nominal range Sn: 4 m
- Smallest object recognizable typ.: 7 mm (FTAR 013A000)
- Wave length: 644 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 20 mA (@ 30 VDC)
- Current consumption typ.:16 mA (@ 24 VDC)
- Voltage drop Vd: < 2 VDC
- Output function: Light / dark operate
- Output circuit: NPN complementary
- Output current: < 50 mA
- Width / diameter: 8 mm
- Height / length: 25.1 mm
- Depth: 15.8 mm
- Type: Rectangular
- Mechanical mounting: Sleeve smooth (stainless steel)
- Housing material: Plastic (ASA, PMMA)
- Front (optics): PMMA
- Connection types: Flylead connector M8 4 pin, L=200 mm
- Cable characteristics: PVC / PVC 4 x 0,08 mm²
