Baumer
OM70T-P0250.HH0240.VI
High Performance Laser Distance Sensor, 50-250mm Measuring Distance Sd, 240mm Sweet Spot, OM70 Laser Point Basic, Touch Display, RS485, 15-28VDC, Analog and RS485, IP67, 74 x 26 x 55mm (HWD)
$3,099.00
OM70T-L0250.HH0240.VI
Alt: 11175097
$3,099.00
High Performance Laser Distance Sensor, 50-250mm Measuring Distance Sd, 240mm Sweet Spot, OM70 Laser Line Basic, Touch Display, RS485, 15-28VDC, Analog and RS485, IP67, 74 x 26 x 55mm (HWD)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

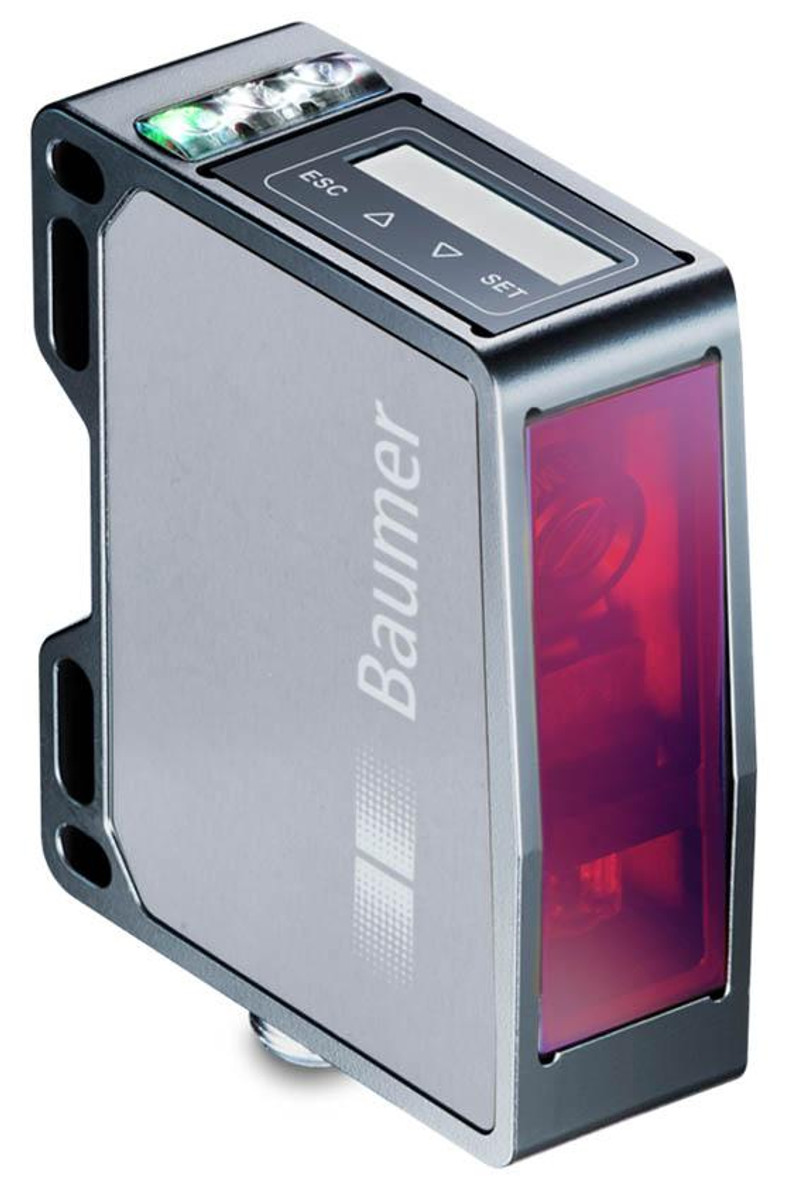

Do you need a high performance laser distance sensor? The Baumer OM70 is a great solution!
OM70 high-performance laser distance sensors offer an easy solution, even for demanding measurement applications. The sensor can be quickly adjusted to the measurement task via the integrated web interface. The latest interfaces additionally ensure very easy integration.
- Reliable and connected
- Best-in-class measurement performance even on demanding surfaces
- User friendly and intuitive sensor adjustment
- Simplified integration with standardized interfaces
- Additional sensor data for preventive maintenance
The OM70-P/L offers the highest precision at the closest ranges as well as reproducibility of long-distance measurements.
The OM70T has tolerance measurement for dimensional accuracy checks.
OM70 Series Features:
- Rectangular, front view
- Aluminum housing, glass front
- Connector type; M12 8-pin connector and/or M12 4-pin connector
- -10-50°C operating temperature
- IP67
- Dimensions 74x26x55mm (HxWxD)
- Available in laser point or laser point basic
Need More Information?:
- Baumer OM70T-L0250.HH0240.VI Sensor Datasheet
- Baumer OM70T-L0250.HH0240.VI Sensor Quickstart
- Baumer OM70 Series Laser Point / Laser Line Tolerance Sensors Operating Instructions
- Baumer OM70 Series Laser Point / Laser Line Tolerance Sensors RS485 Index Command List
- Baumer OM70 Series Laser Point / Laser Line Sensors RS485 Protocol Structure
- Baumer OM70 Series Flyer
- Baumer Optical Distance Sensor Brochure
- Baumer Photoelectric Sensors Product Catalog
- Baumer Distance Measurement Product Overview
