ESWE-B9D39KX-D10

ESWE-B9D39KX-D10

Alt: 11136101

$493.05

Enclosed Starter for 3hp@200V, 3hp@230V, 5hp@460V, 7-1/2hp@575V Maximum hp 3-Phase Motor, 9 Amp CWB Contactor, 480VAC Coil Voltage without CPT, 50/60Hz, 6.3 - 10 Amp MPW40 Overload Relay

Weight:
11.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

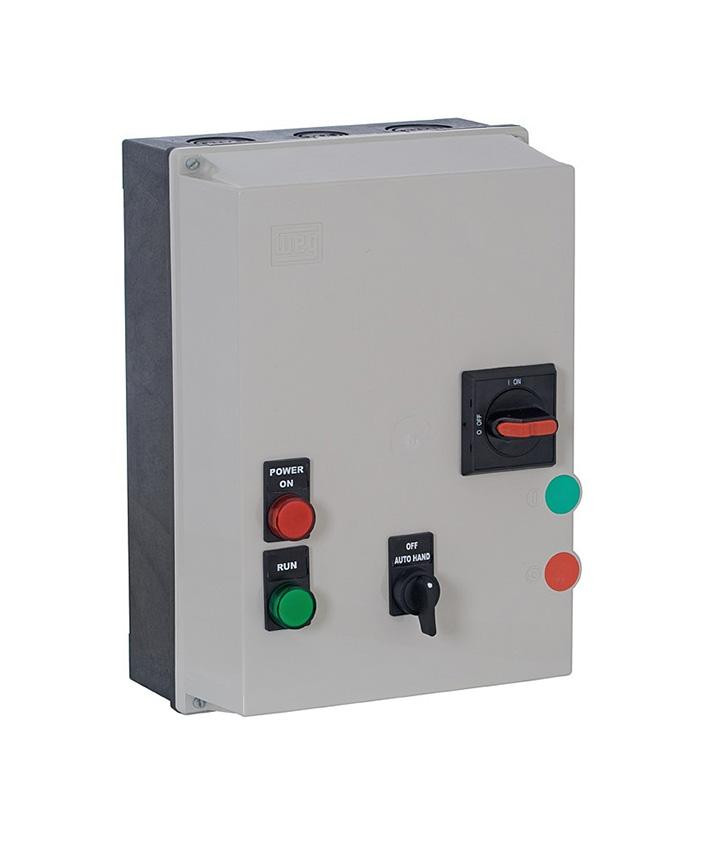

Full Voltage Combination Type E Across The Line Non-Reversing Motor Starter (without Control Power Transformer), Non-Metallic 4X Enclosure, Hand-Off-Auto Switch, Start-Stop Pushbutton, Pilot Lights, Size E-1: 14.2 x 9.9 x 6.6 " (HWD)
Description

WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.

Magnetic starters are designed to protect and operate motors.

There are a number of starters available from WEG:

Non-combination starters:

  • ESW series is metallic, NEMA 1, across the line starter, three phase
  • ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
  • ESWX series is metallic, NEMA 7/9, explosion proof starters
  • PESW series is non-metallic, NEMA 4X, across the line starter, three phase
  • PESWS series is non-metallic, NEMA 4X, across the line starter, single phase

Combination starters:

  • ESWC series
  • ESWE series
  • ESWF series

Marshall Wolf Automation is your authorized WEG distributor!

Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.



Features Include:

  • Rated current (AC-3): 9A (CWB9)
  • Overload relay: 6.3-10 A (MPW40)
  • Control voltage: 480V50/60HZ
  • Control Devices: H-O-A+On+Off+Mr+Signal Switch
  • Standard Enclosure Type: Non-metallic 4X
  • Control Power Transformer: with or without (*CPT primary 575V – secondary 120V - *CPT primary 480V/240V – secondary 120V)
  • Branch Disconnect: rotary through-the-door handle
  • Short-Circuit Protection: manual motor protection
  • Motor Control: magnetic IEC contactor
  • Overload Protection: manual motor protection
  • Custom enclosure and control options available upon request
  • Other enclosure options available upon request
