Baumer

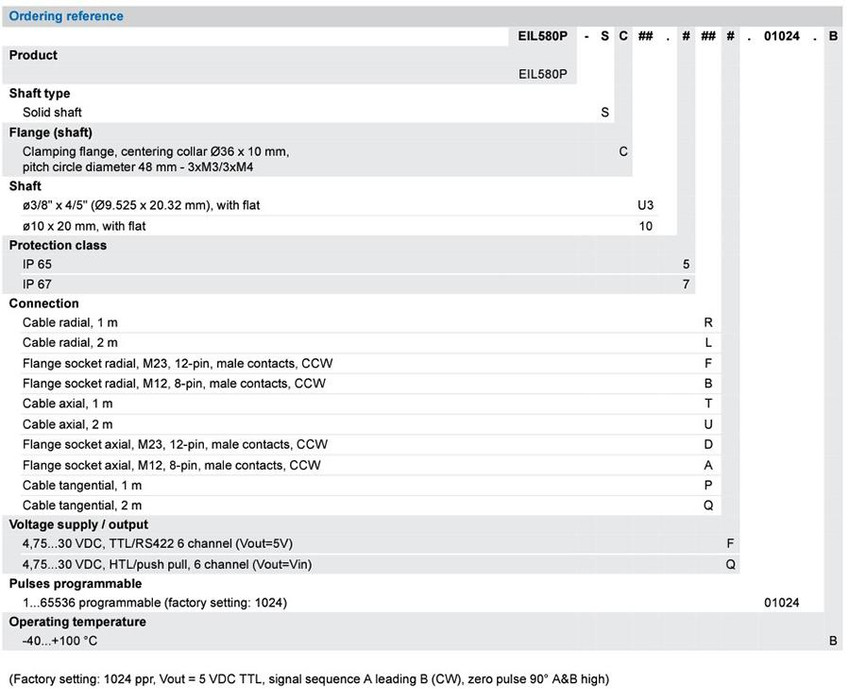

EIL580-SC10.5FN.02048.A
Incremental Encoder, Ø10 x 20mm Solid Shaft with Clamping Flange, IP65, Flange Socket Radial, M23, 12-pin, Male Contacts, CCW, 8-30VDC, HTL/Push-Pull, 6-Channel, EIL580-SC Series
$342.82
Product image is representative only, please verify specifications.
EIL580-SC10.5FE.02048.A
Alt: 11099620
$328.32
Incremental Encoder, Ø10 x 20mm Solid Shaft with Clamping Flange, IP65, Flange Socket Radial, M23, 12-pin, Male Contacts, CCW, 5 VDC, TTL/RS422, 6-Channel, EIL580-SC Series
- Weight:
- 10.00 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Series Features Include:
- Voltage supply: 4.75 - 30 VDC
- Pulses per revolution: 1 - 65536
- Reference signal: Zero pulse 90° or 180°
- Sensing method: Optical
- Size (flange): ø58 mm
- Shaft type: ø10 x 20 mm, solid shaft with flat, ø3/8" x 4/5" (ø9.525 x 20.32 mm), solid shaft with flat
- Precise optical sensing (interpolated)
- Output signal level programmable (TTL or HTL)
- Clamping flange
- Connection axial, radial or tangential
- Pulses per revolution 1 - 65536, programmable
- High protection up to IP 67
- High resistance to shock and vibrations
Material
- Housing: aluminum die-cast
- Flange: aluminum
- Solid shaft: stainless steel
Programmable parameters:
- Output level TTL/HTL
- Pulse number 1 - 65536
- Zero pulse width 90°/180°
- Zero pulse position
- Signal sequence
