Baumer
CFDK 25G3125/LN5
Capacitive Proximity Sensor, Flush, 10-30VDC, 12mm Sn Sensing Distance, Push-Pull, 2m PVC Cable, PA 12 Housing, 25 x 52.4 x 6mm (WLD), -25 to +75°C, IP65
$264.00
CFDK 25G3125/LN4
Alt: 11093423
$264.00

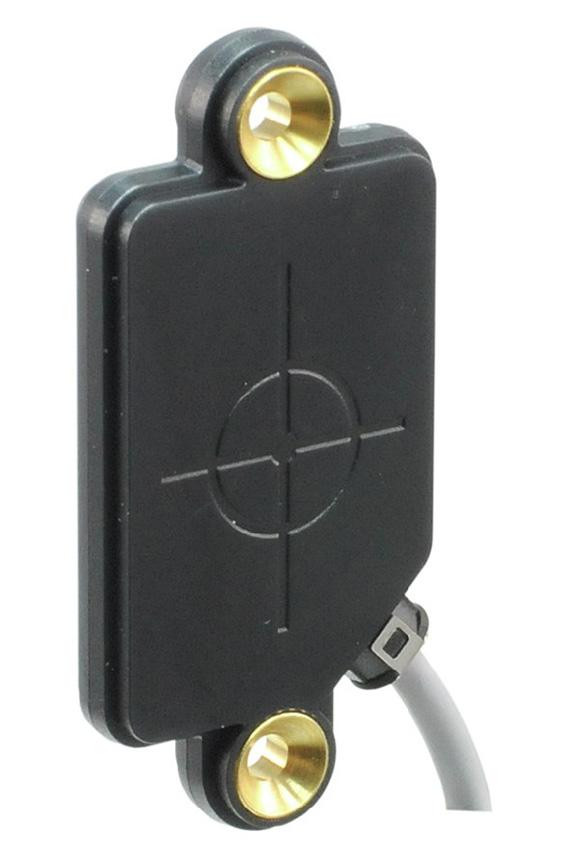

Capacitive Proximity Sensor, Flush, 10-30VDC, 8mm Sn Sensing Distance, Push-Pull, 2m PVC Cable, PA 12 Housing, 25 x 52.4 x 6mm (WLD), -25 to +75°C, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 15 mA
- Output function: Active low
- Output circuit: Push-pull
- Output current: < 100 mA
- Voltage drop Vd: < 3 VDC
- Switching frequency: 35 Hz
- Nominal Sensing Distance: 8 mm
- Mounting Type: Flush
- GND electrode: No
- Sensitivity Adjustment: No
- Output Indicator: LED red
- Measurement Type: Contactless
- Type: Rectangular
- Housing material: PA 12

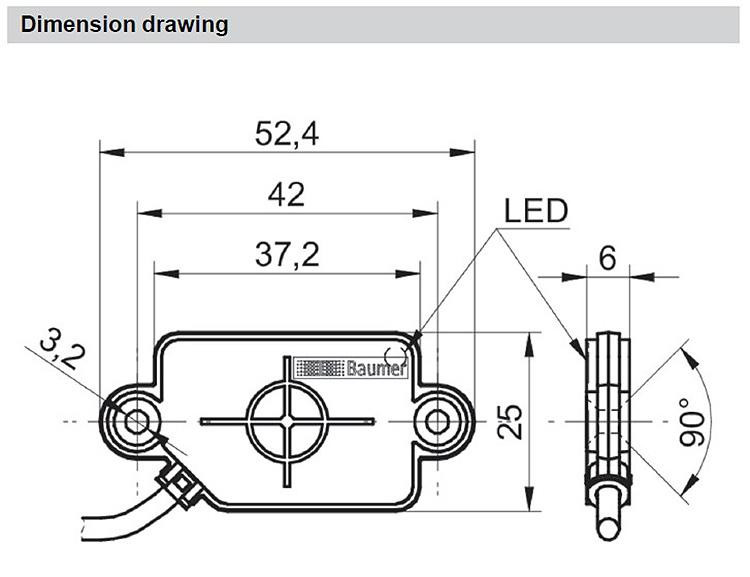

- Dimension: 25 mm
- Housing length: 52.4 mm
- Depth: 6 mm
- Connection types: Cable PVC 3 x 0.14, 2 m
