Baumer
IGYX 18P17B3/L

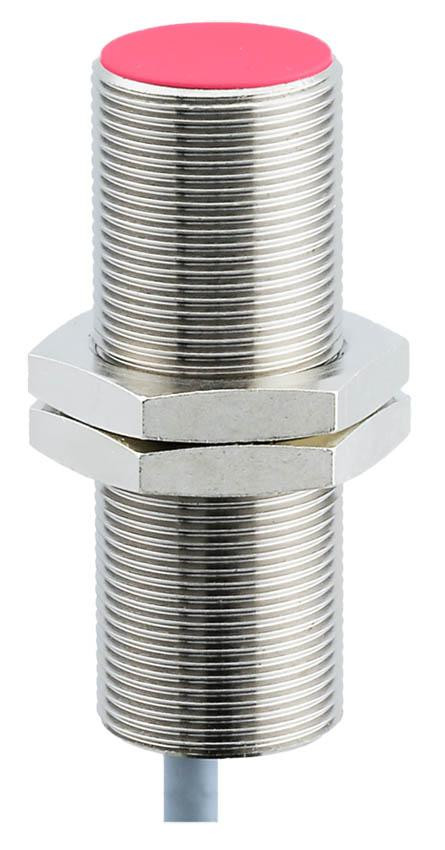

Inductive Proximity Sensor, Ø18x50mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, 2m Cable, IP67
$53.00
IGYX 18P17B3/S14L
Alt: 11078862
$49.00
Inductive Proximity Sensor, Ø18x60mm, Flush, 10-30VDC, 8mm Range, PNP NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Mounting type: Quasi-flush
- Nominal sensing distance Sn: 8 mm
- Assured sensing distance Sa: 6.4 mm
- Hysteresis: 3 - 20 % of Sr
- Output indicator: 3 port LED red
- Switching frequency: 400 kHz
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 15 mA
- Output circuit: PNP make function (NO)
- Voltage drop Vd: < 2.5 VDC
- Output current: < 200 mA
- Type: Cylindrical threaded
- Material (sensing face): PBT, red
- Housing material: Brass nickel plated
- Dimension: 18 mm
- Housing length: 60 mm
- Connection types: Connector M12
Technical Information:
