Euchner
109490
Mounting Plate for Evaluation Module, Suitable for all MGB-L.-AR.-... and MGB-L.-AP.-…
$48.10
110545
Alt: MGB-L2-APA-AA6A1-S3-L-110545
$1,190.36

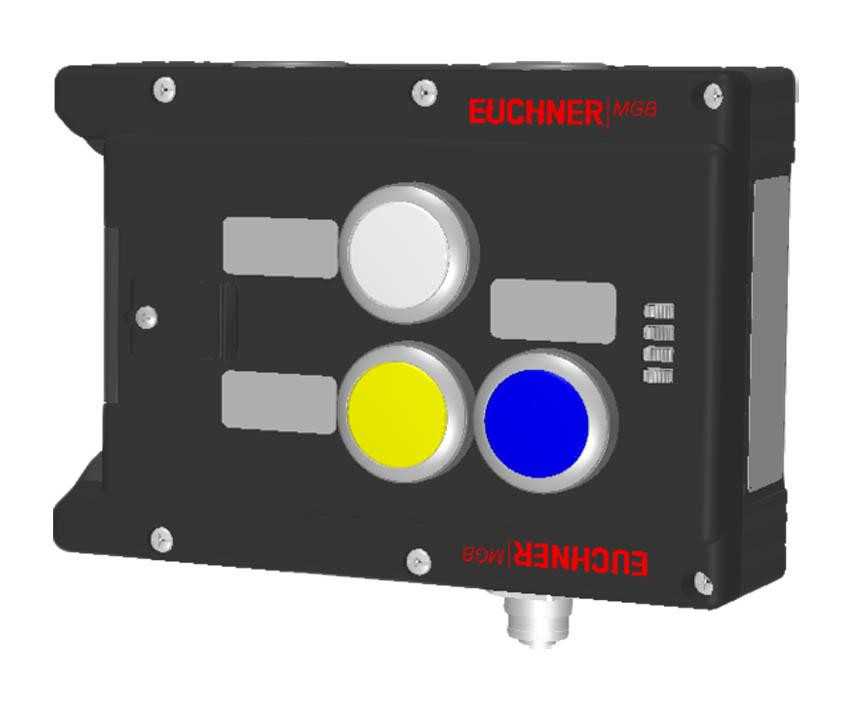

Multifunctional Gate Box Locking Module, Guard Lock Monitoring, 3 Illuminated Pushbuttons (White, Yellow, Blue), Cable Entry, M12 Plug for Direct Connection of an Enabling Switch, Unicode
- Weight:
- 2.29 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Rated impulse withstand voltage: 1.5 kV
- Rated insulation voltage: 30 V
- Breaking capacity: max. 0.25 W
- LED power supply: 24 V DC
- Switching current: 1 - 10 mA
- Current consumption (IUA): max. 375 mA
- Current consumption (IUB): max. 80 mA
- Output type Semiconductor outputs, p-switching, short circuit-proof
- Operating voltage DC (UA): 24 V DC -15% - +10%
- Connection Cable entries: Cable entries M20x1.5 / Plug connector SFF5
- Degree of protection: IP65
- Material: Housing Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$608.09
