Euchner
109490
Mounting Plate for Evaluation Module, Suitable for all MGB-L.-AR.-... and MGB-L.-AP.-…
$48.10
110544
Alt: MGB-L2-APA-AA6A1-S3-R-110544
$1,190.36

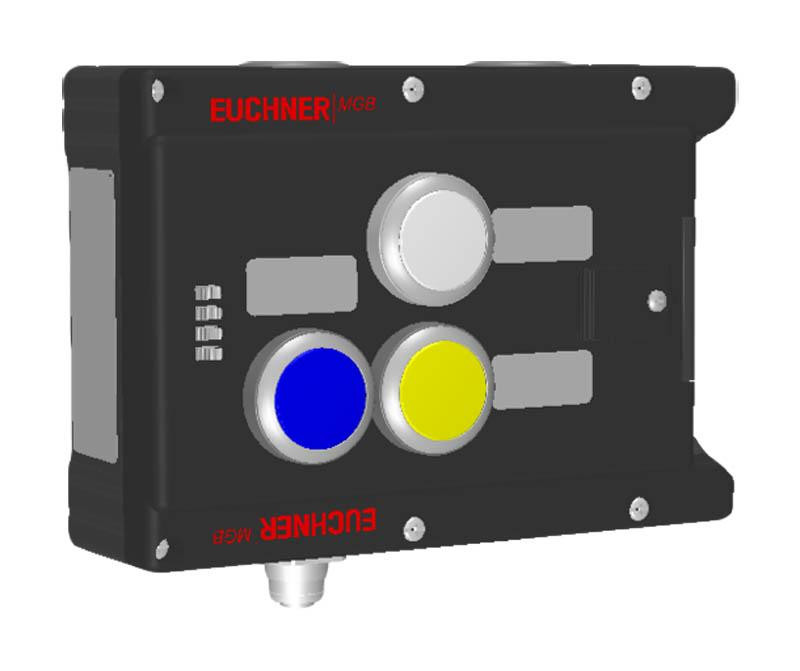

Multifunctional Gate Box Locking Module, Guard Lock Monitoring, 3 Illuminated Pushbuttons (White, Yellow, Blue), with Cable Entry, with M12 Plug for Direct Connection of an Enabling Switch, Unicode, Includes Adhesive Labels to Affix in Pre-
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated impulse withstand voltage: 1.5 kV
- Rated insulation voltage: 30 V
- Breaking capacity: max. 0.25 W
- LED power supply: 24 V DC
- Switching current: 1 - 10 mA
- Output type Semiconductor outputs, p-switching, short circuit-proof
- Operating voltage DC (UA): 24 V DC -15% - +10%
- Connection Cable entries: Plug connector SFF5 / Cable entries M20x1.5
- Degree of protection: IP65
- Guard locking principle: Open-circuit current principle
- Material: Housing Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel
