Euchner
109490
Mounting Plate for Evaluation Module, Suitable for all MGB-L.-AR.-... and MGB-L.-AP.-…
$48.10
110498
Alt: MGB-L1-APA-AC6A1-S1-R-110498
$1,340.42

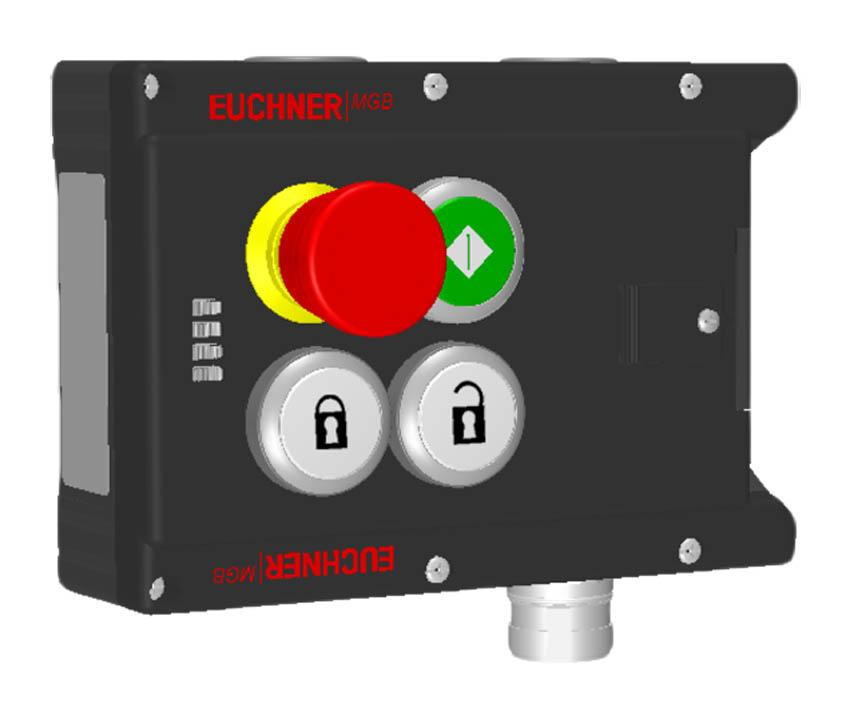

Multifunctional Gate Box Locking Module, Guard Lock Monitoring, E- Stop plus 3 Pushbuttons (2 Illuminated (Green, White) + 1 Non-Illuminated (White)), RC18 Plug, Unicode, MGB-L1-APA-AC6A1-S1-R-110498
- Weight:
- 2.39 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Rated impulse withstand voltage: 1.5 kV
- Rated insulation voltage: 30 V
- Breaking capacity: max. 0.25 W
- LED power supply: 24 V DC
- Switching current: 1 - 100 mA
- Switching voltage: 5 - 24 V
- Output type Semiconductor outputs, p-switching, short circuit-proof
- Operating voltage DC (UA): 24 V DC -15% - +10%
- Connection Cable entries: Plug connector RC18
- Degree of protection: IP65
- Material: Housing Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel
