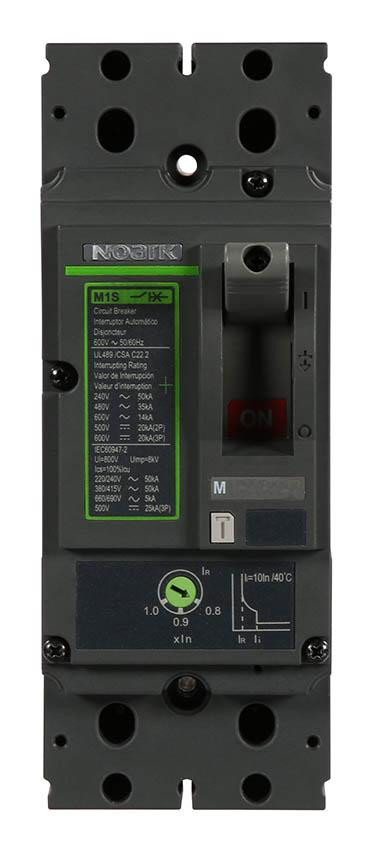

M1S150T22L
Alt: 1102165, *Includes Tariff
$349.94
MCCB, UL489, M1S, 2 Pole, 150 Amp (150A), 50kA@240VAC, 35kA@480VAC, 14kA@600VAC, 20kA@600VDC, 150 A Frame Size, Adj Thermal/Fixed Magnetic Trip, Lug Line /Load Side Connection, Molded Case Circuit Breaker, 4/14/25: 10% Tariff from Mfg Included
- Weight:
- 2.53 LBS
- Minimum Purchase:
- 1 unit
Description
Our NOARK Ex9 Series (M series) of molded case circuit breakers are availabe from 15~600 amp.
NOARK Electric offers a complete range of 2 and 3 pole Molded Case Circuit Breakers in four frame sizes: M1 - 100 A, M2 - 225 A, M3 - 400 A and M4 - 600 A.
Each frame size offers a range of interrupting voltage ratings from 240-690 Vac and 250-600 Vdc. The M (including M1S) series conforms to global standards that include UL 489, CSA C22.2 No 5.1 and IEC 60947-2.
The Ex9 Series - M offers:
• High-breaking capacity and a new patented arc extinguishing design
• New patented technology reduces the manual operating force
• High quality compact modular with energy saving and environmentally friendly design
• Installation flexibility: P Bus Bar Connection P Lug Line/Load Side Connection P Plug-In P Rear Connection P Draw-Out
• Fixed and adjustable trip setting units
• Wide range of accessories: P Alarm Switch and Auxiliary Contact P Shunt and Under-Voltage Trip P Interlock P Rotary Handle P Motor Operator
Specifications
Alternate Part Number
1102165, *Includes Tariff
Amp Rating
150 Amp
Circuit Breaker Type
Molded Case (MCCB)
Poles
2 Pole
Short Circuit Capacity
50kA
Trip Curve
See Spec or N/A
All - Voltage
220/240VAC, 460/480VAC, 600V
Warranty
5 Years
Series
M1S Series (Ex9M1S)
Full Catalog
Noark MCCB Series M Catalog
Product Data Sheet
Noark MCCB Ex9 Series M Datasheet
Additional Documents
Noark MCCB M Series Instructions
Weight
2.53
