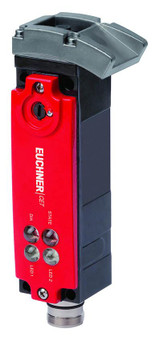

Safety Switch with Guard Locking and Integrated Evaluation Electronics, Locking Force up to 6,500 N, 2 Safety Outputs, M23 (RC18) 19-Pin Plug Connector, Unicode, Door Monitoring Output, Teach-in Input, IP65/67
The Euchner CET series is used to guard lock for personnel protection in accordance with EN 14119.
This series offers very high guard locking of up to 6500N, 2 safety outputs, a head that can be rotated in 90° steps and it is IP67 rated. The metal housing and safety category 4 and PL e according to EN ISO 13849-1 make this the right safety switch for you!
CET-AP - Single device
Safety switch with guard locking and safe guard lock monitoring
Integrated CES-AP electronics
No special evaluation unit required
Safety category 4 and PL e in accordance with EN ISO 13849-1 with any mounting position, head down/up/horizontal
Two safe semiconductor outputs and signal output OUT
Safety outputs with clocking
Input (optional) for connection of feedback loop and start button
CET-AR - For connection of up to 20 AR devices
Safety switch with guard locking and safe guard lock monitoring
Integrated CES-AR electronics
No special evaluation unit required
Series connection of up to 20 devices (CES-AR, CET-AR, MGB-AR, ...) in an AR chain possible
Safety category 4 and PL e according to EN ISO 13849-1 with any mounting position, head down/top/level
Two safe semiconductor outputs and signal output OUT
Safety outputs with clocking
Input (optional) for connection of feedback loop and start button
CET-AS - For direct connection to AS-Interface
Integrated AS-i connection
Robust metal housing
Suitable for heavy doors
High tamper resistance
High protection class IP67
Detailed diagnosis with four LEDs (ASi/STATE, 2 colors each)
