103008488
Alt: TESK-SU-02ST2
$267.00

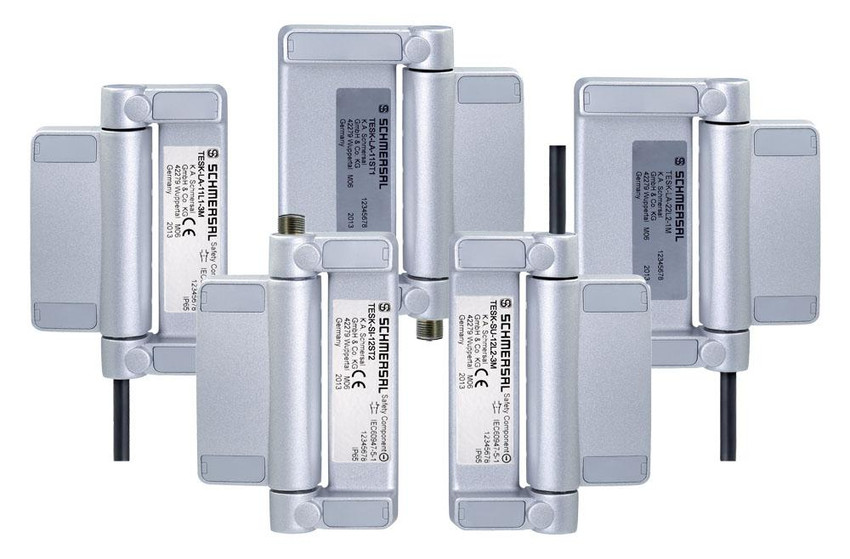

Hinged Safety Switch
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Enclosure: Zinc diecast, enclosure cover self-extinguishing thermoplastic
- Hinge bolt: Galvanized steel / zinc die-cast C45
- Contact type: Change-over contact with double break Zb
- Switching system: A IEC 60947-5-1; slow action, positive break NC contact
- Connection: Connector plug M12 or cable
- Connector plug: M12, 5 or 8 pin, A - coded
- Switching angle: 3° from the set zero point
- Positive break angle: 10° from the set zero point
- Max. swivel angle: 270°
- Actuating speed: max. 180° / 0.3 s
- Mechanical life: > 1 million operations
- Ambient temperature: −25 °C … +65 °C
- Protection class: IP 65 to IEC/EN 605
