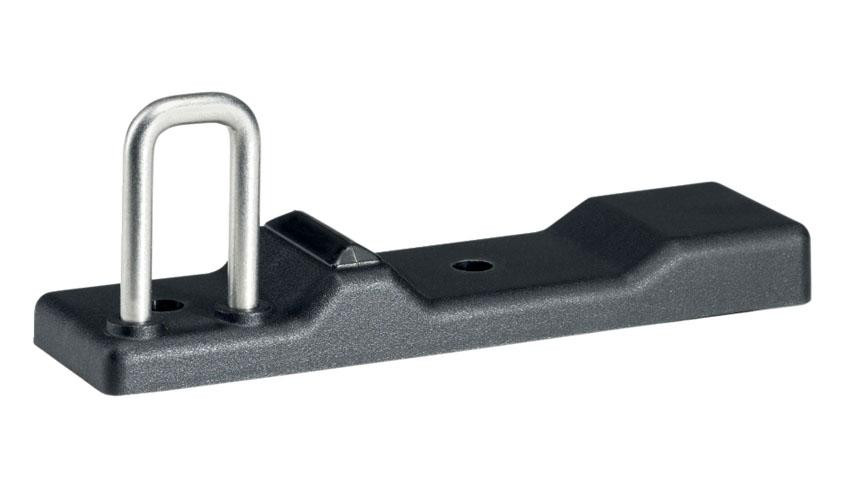

Please note the actuator is not included, please view our 'Accessories' tab for related items.
Three actuating directions; actuation from the rear side, actuation from the slim side, actuation from the front.
The safety outputs of the AZM300Z solenoid interlock (solenoid interlock monitoring) are enabled when the safety guard is closed and the solenoid interlock is locked. For applications where process protection is required, the AZM300B version (actuator monitoring) can be used.
The safety outputs of the AZM300B are already enabled when the safety guard is closed. With this device, the solenoid interlock must not be imperatively locked. Additionally designs with integrated emergency exit -T or with integrated emergency release -N are available.
AZM with emergency exit or emergency release:
Emergency Exit (T) - filling and actuation from within the hazardous area
Emergency Release (N) - mounting and actuation only outside of the safety guard.
A little about the AZM300 series in general:
The AZM300 is a combination of a solenoid latching keyed interlock and RFID safety sensor! One look at the AZM300 and you cannot help but notice the distinctive external cam.
This unique design allows the AZM300 to accept the actuator from three sides, providing mounting flexibility for either left- or right-hinged doors, or sliding guards. The solenoid locking force of 1,000 N keeps the guard door securely locked until dangerous conditions, which may exist even after removal of power, have abated.
The AZM300 also has integrated a radio frequency identification (RFID) sensor to detect the actuator and indicate a closed guard. This non-contact operating principle limits wear on components, tolerates misalignments, and offers the option of individual coding: The basic version of the sensor responds to any AZM300 target actuator; The “I1” version only accepts the coded ID number of the specific target actuator which is taught in during the first start-up; The “I2” version allows the teach-in process to be repeated, allowing replacement of a lost or damaged actuator.
The AZM300 features all of the diagnostic advantages of our electronic sensors. With continuous internal function tests and monitoring of the safety outputs, the AZM300 can be wired in series without detriment to the safety levels. Diagnostic LED’s on the sensor indicate various errors, misalignment and door open/closed signaling. For more advanced indication, the AZM300 is also available with serial diagnostics.
The AZM300 housing is made of ECOLAB approved materials and is sealed to IP69K standards – a viable solution for use in hygienic or outdoor environments where high temperature and high pressure wash downs are typical.
Marshall Wolf Automation is a stocking Schmersal distributor!
Series Features Include:
Series-wiring
Compact design
Manual release
Hygienic design
Protection class IP 69
Thermoplastic enclosure
3 different directions of actuation
3 LEDs to show operating conditions
Suitable for hinged and sliding guards
Suitable for mounting to profile systems
RFID-technology for needs-based protection against tampering
