$364.00
FHCK 07N6901/KS35A
Alt: 10152085
$349.00

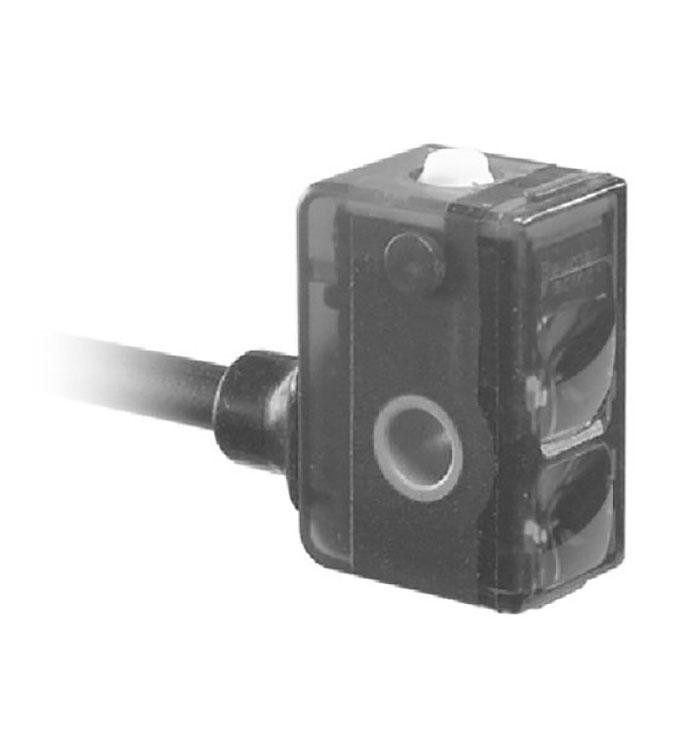

Subminiature Diffuse Sensor with Background Suppression (BGS), Pulsed Red LED, Teach-In, 10-30VDC, 60mm Range, NPN, Light/Dark Operate, 100mA, 8 x 16.2 x 10.8 (WHD), Flylead Connector M8 4-Pin 200mm Length, Ambient Temperature: -20 to +50°C, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Features Include:
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 25 mA
- Current consumption typ.: 20 mA
- Output current: 100 mA
- Type: Background suppression
- Light source: Pulsed red LED
- Sensing distance: 10 - 60 mm
- Alignment / soiled lens indicator: Flashing light indicator
- Sensing distance adjustment: Teach-in
- Width / diameter: 8 mm
- Height / length: 16.2 mm
- Depth: 10.8 mm
- Housing material: Plastic (PMMA, MABS, PA)
- Front (optics): PMMA
- Connection types: Flylead connector M8 4 pin, L=200 mm
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
FHCK 07P6901/KS35A
Photoelectric Sensor, Rectangular, Diffuse with Background Suppression, MINOS, 10-60mm Sensing Distance, Teach-In, 10-30VDC Voltage Supply, Plastic Housing, IP65
$349.00
Baumer
FECK 07N6901/KS35A
Through Beam Sensor, Subminiature, Receiver, 10-30VDC, 2m Actual Range Sb, 2.5m Nominal Range Sn, Teach-in, NPN, Light/Dark Operate, M8 4-Pin Flylead (200mm Length), 16.2 x 8 x 10.8mm (HWD), Plastic Housing, PMMA Optics, -20 to +50°C, IP65
$279.00
Baumer
FPDK 07N6901/KS35A
Retroreflective Sensor, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range Sn, Teach-in, NPN, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm HWD, Plastic Housing, PMMA Optics,
$339.00
$279.00
$314.00
Baumer
FPCK 07N6901/KS35A
Retroreflective Sensor, Polarization Filter, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range, Teach-in, NPN, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm Rectangular HWD,
$339.00
Baumer
FHDK 07N6901/KS35A
Subminiature Diffuse Sensor, Background Suppression, Pulsed Red LED, 10-60mm Range Tw, 10-30VDC, Light/Dark Operate, NPN, <100mA, Flylead Connector M8 4-Pin 200mm Length, 16.2 x 8 x 10.8mm (HWD), Plastic Housing, PMMA Optics, -20 to +50°C,
$349.00
$364.00
