Baumer
CFDK 30N1600/S14

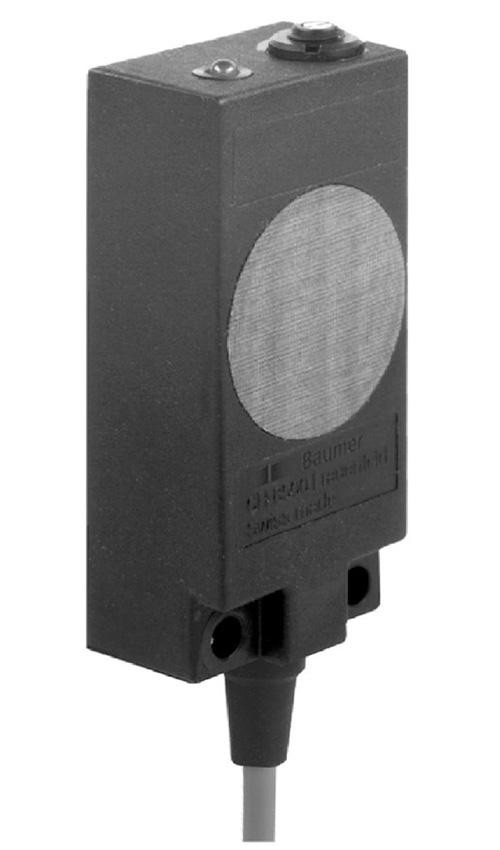

Capacitive Proximity Sensor, Flush, 10-30VDC, 15mm Sn Sensing Distance, NPN, NO, 15 Turn Potentiometer, M12 Connector, PBT Housing, 30 x 65mm (WL), -25 to +75°C, IP65
$440.61
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
CFDK 30N1600
Alt: 10119716, *Includes 6% Tariff from Manufacturer
$468.28
Capacitive Proximity Sensor, Flush, 10-30VDC, 15mm Sn Sensing Distance, NPN, NO, 15 Turn Potentiometer, 2m Cable, PBT Housing, 30 x 65mm (WL), -25 to +75°C, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Specifications
Alternate Part Number
10119716, *Includes 6% Tariff from Manufacturer
Connection
w/Cable
Material
Plastic
Normally Open/Closed
Normally Open (NO)
NPN or PNP
NPN (Sink)
All - Specific Ratings
IP65
Series
CFDK Series
Shielded/Unshielded
Shielded - Flush
Size
Rectangular
Type of Sensor
Capacitive
All - Voltage
10-30VDC
Warranty
3 Years
Weight
.5
Features Include:
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 20 mA
- Output circuit: NPN make function (NO)
- Output current: < 200 mA
- Voltage drop Vd: < 1.5 VDC
- Switching frequency: 50 Hz
- Nominal Sensing Distance (adjustable): 4 - 15 mm
- Mounting Type: Flush
- Sensitivity Adjustment: Potentiometer, 15 turn
- Output Indicator: LED yellow
- Measurement Type: Contactless
- Type: Rectangular
- Housing material: PBT
- Dimension: 30 mm
- Housing length: 65 mm
- Connection types: Cable, L=2 m
