101189088

Features Include:

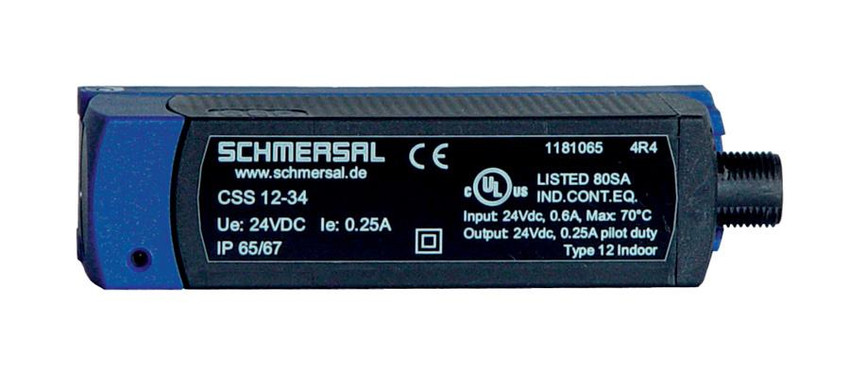

• Thermoplastic enclosure
• 27 mm x 108.2 mm x 35 mm
• Misaligned actuation possible
• 1 x connector plug M12, 8-pole
• Electronic contact-free, coded system
• Max. length of the sensor chain 200 m
• 2 short-circuit proof PNP safety outputs
• High repeat accuracy of the switching points
• To control positive-guided relay without downstream safety monitoring module
• Without edge monitoring of the enabling pushbutton, suitable for automatic start
• Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
• Suitable as individual or terminal device in series-wiring of standards sensors to replace a safety monitoring module
