101189087
Alt: CSS14-34F1-S-D-M-ST, CSS 14-34F1-S-D-M-ST
$438.00

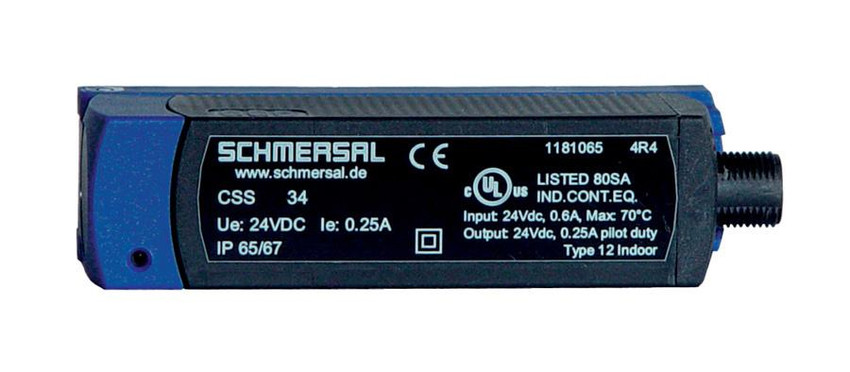

Electronic Safety Sensor (Pulse Echo)
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Actuation from side
- Thermoplastic enclosure
- 27 mm x 108.2 mm x 35 mm
- Misaligned actuation possible
- 1 x connector plug M12, 8-pole
- Electronic contact-free, coded system
- Max. length of the sensor chain 200 m
- 2 short-circuit proof PNP safety outputs
- High repeat accuracy of the switching points
- With edge monitoring of the reset pushbutton
- To control positive-guided relay without downstream safety monitoring module
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
- Suitable as individual or terminal device in series-wiring of standards sensors to replace a safety monitoring module
- Self-monitored series-wiring of up to 30 CSS 34
