101181061
Alt: CSS14-34-S-SD-M-L, CSS 14-34-S-SD-M-L
$406.00

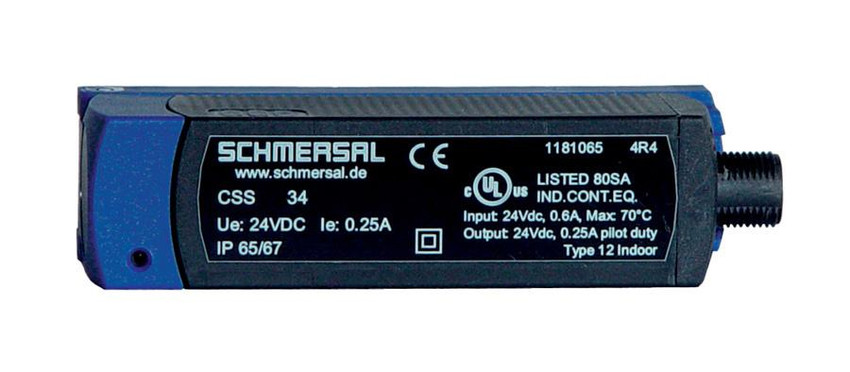

Electronic Safety Sensor (Pulse Echo)
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Actuation from side
- Thermoplastic enclosure
- 27 mm x 108.2 mm x 35 mm
- Serial diagnostic output
- 1 x Pre-wired cable 8-pole
- Misaligned actuation possible
- Electronic contact-free, coded system
- Max. length of the sensor chain 200 m
- Max. 31 sensors can be wired in series.
- 2 short-circuit proof PNP safety outputs
- High repeat accuracy of the switching points
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
