Product image is representative only, please verify specifications.
101160101
Alt: TQ441-01/01YU, TQ 441-01/01Y-UE-M20
$323.00

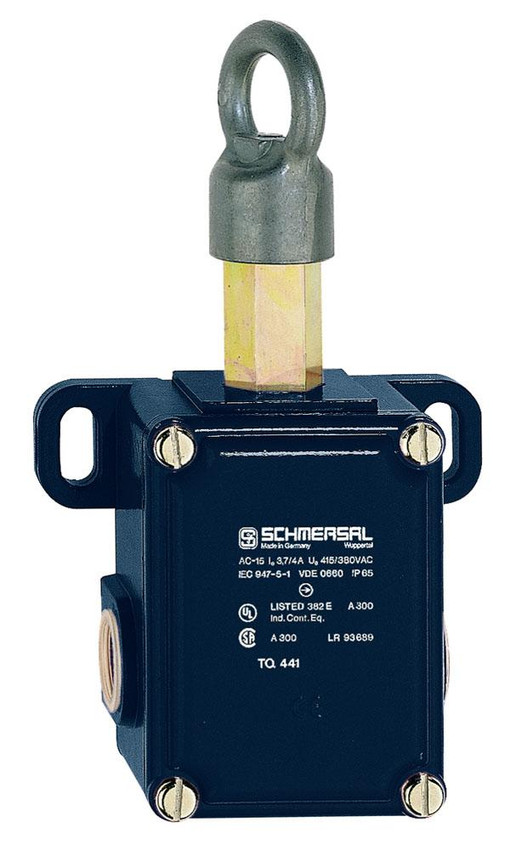

Pull Wire Switch
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal is one of the largest manufacturers of safety switching devices in the world. Their products includes safety switches, position switches, guarding devices, fail-safe monitors and timers as well as safety controllers, safety light curtains and foot switches.
Schmersal was founded in 1945 by brothers Kurt Andreas and Ernst Schmersal.
Series Features Include:
- 2 contacts
- 2 cable entries
- Wire up to 25 m long
- Reset by push button or key possible
- Enclosure: light-alloy diecast, paint finish
- Cover: steel, painted
- Protection class: IP 65, key reset: IP 54 to EN 60529
- Contact material: silver
- Contact type: change-over contact, double break with 2 separate contact bridges, positive break NC contacts A
- Switching system: slow action, positive break NC contacts A
- Termination: screw terminal
- Cable section: max. 4 mm2 (incl. conductor ferrules)
- Uimp: 4 kV
- Ui: 400 V
- Ithe: 10 A
- Ie/Ue: 4 A / 380 V
- Utilization category: AC-15
- Max. fuse rating: 25 A gL/gG D-fuse
- Ambient temperature: – 30 °C - + 90 °C
- Mechanical life: 30000 operations
- Switching frequency: 3600/h
