097347
Alt: 97347, TZ1LE024RC18VAB-C2123
$1,818.82

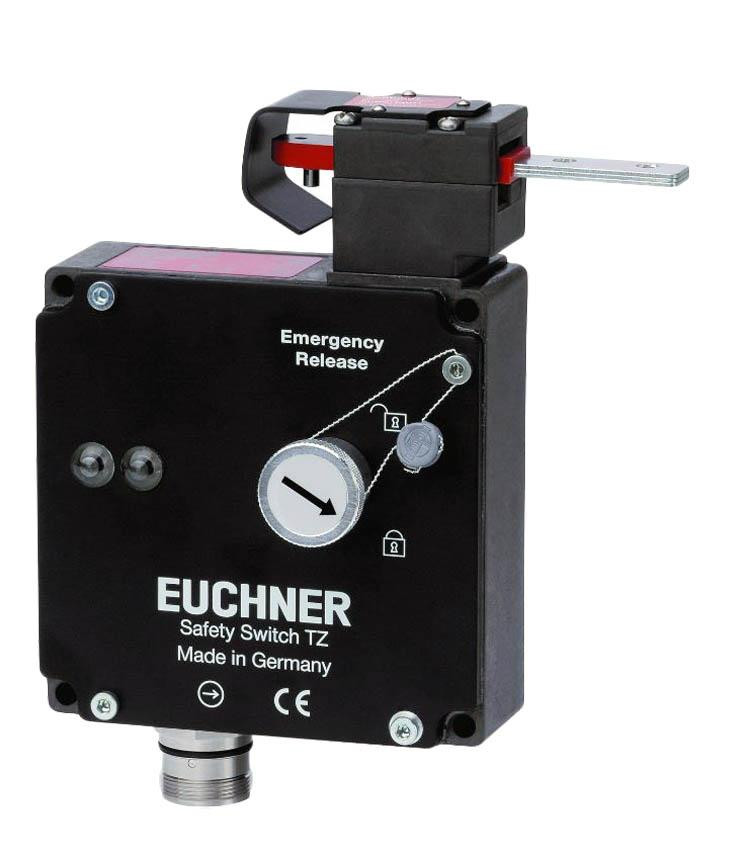

Safety Switch
- Weight:
- 3.18 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Emergency release on the front with rotary knob
- Escape release on the rear with pushbutton
- Protective plate for switch head
- Two LED displays, red and green
- Actuating head fitted left
- Switching principle: Slow-action switching contact
- LED indicator: Operating voltage corresponds to the solenoid voltage
- Power consumption: 10 W
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 110 V
- Short circuit protection according to IEC 60269-1: 4A gG
- Solenoid operating voltage: AC/DC 24 V -15% - +10%
- Switching current: min. at 24 V 1 mA
- Switching voltage: min. at 10 mA 12 V
- Thermal rated current Ith: 4 A
- Utilization category: AC-15 4A 110V | DC-13 4A 24V
- Actuating force: 35 N
- Actuation frequency max.: 1200 1/h
- Ambient temperature: -25 ... +80 °C
- Approach direction: Actuating head left C
- Approach speed max.: 20 m/min
- Connection: 1 x Plug connector RC18
- Degree of protection: IP65
- Extraction force: 30 N
- Guard locking principle: Closed-circuit current principle
- Insertion depth: 52 mm
- Installation orientation: any
- Lid: black
- Locking force Fmax: 2000 N
- Locking force FZh: 1500 N
- Contact: Silver alloy, gold flashed
- Housing: Anodized die-cast alloy
- Mechanical life: 1 x 10⁶
- Number of door position positively driven contacts: 2
- Number of guard lock monitoring NO contacts: 2
- Number of guard lock monitoring positively driven contacts: 2
- Retention force: 10 N
